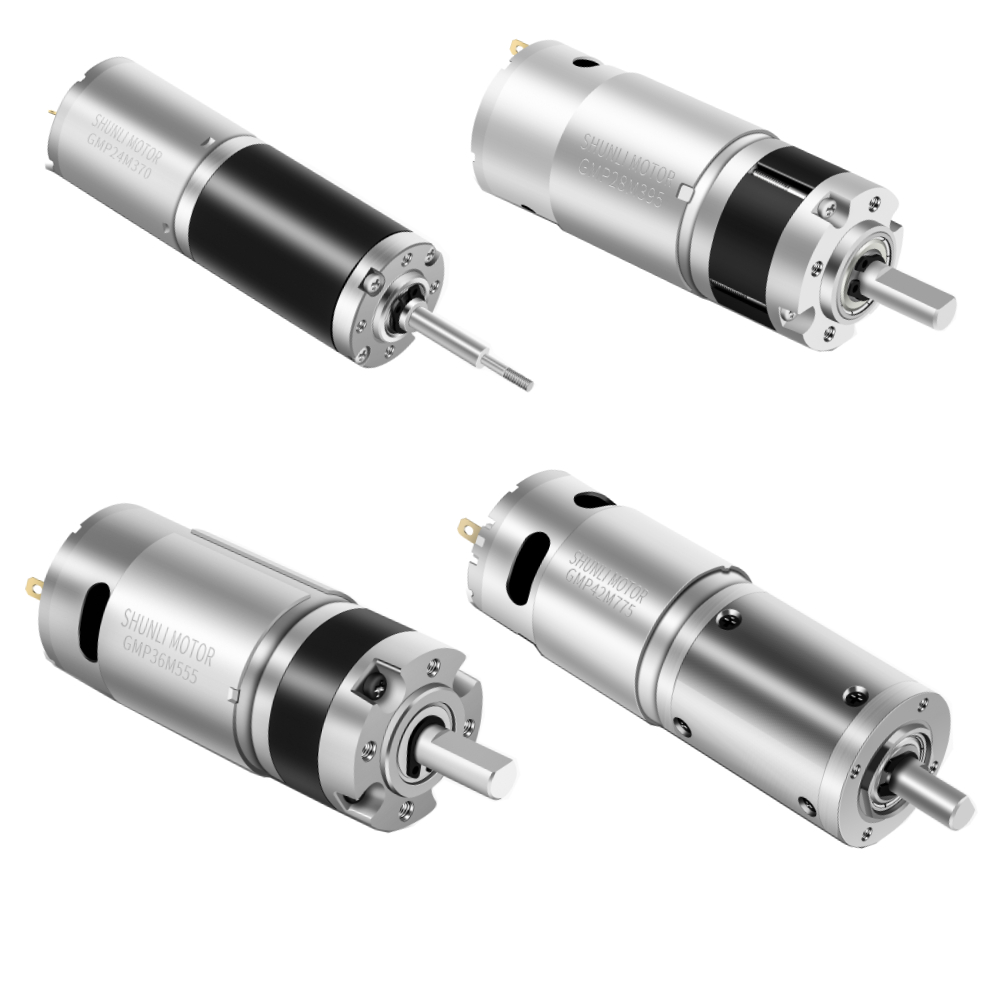

12v 24v 36v 48 Volt Bldc Brushless Micro Motor Customized Permanent Magnet Resin Pack Brushless Dc Motor 36mm

Product Description

24v 36v 48 volt bldc gear motor for drill 100 watt motor

Product Details

12v 24v 36v 48 Volt Bldc Brushless Micro Motor Customized Permanent Magnet Resin Pack Brushless Dc Motor 36mm

Motor Customized Specification, Please Contact Us.

Reference Drawing

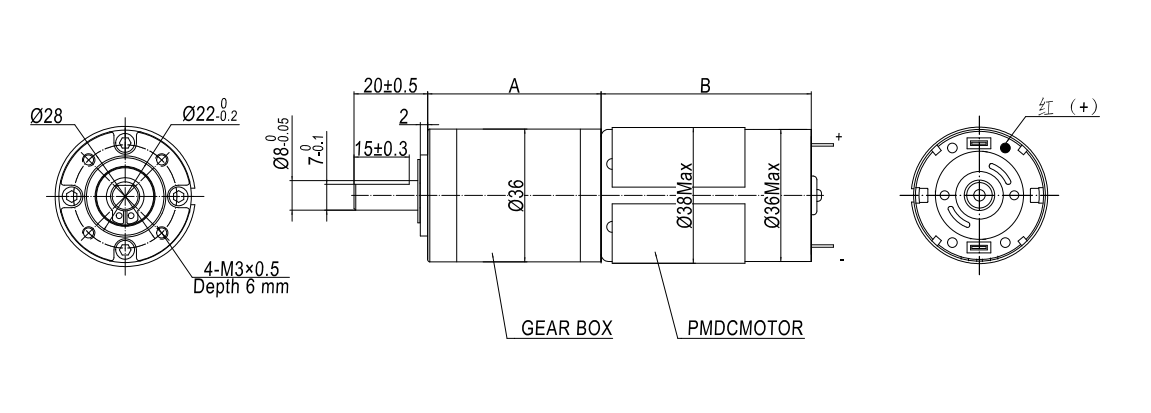

GMP36 (Brush Type)

A part: Gearbox length (Reference Gearbox Technical Date)
B part:
- 545 Length: 50mm
- 555 Length: 57mm
- 575 Length: 65mm

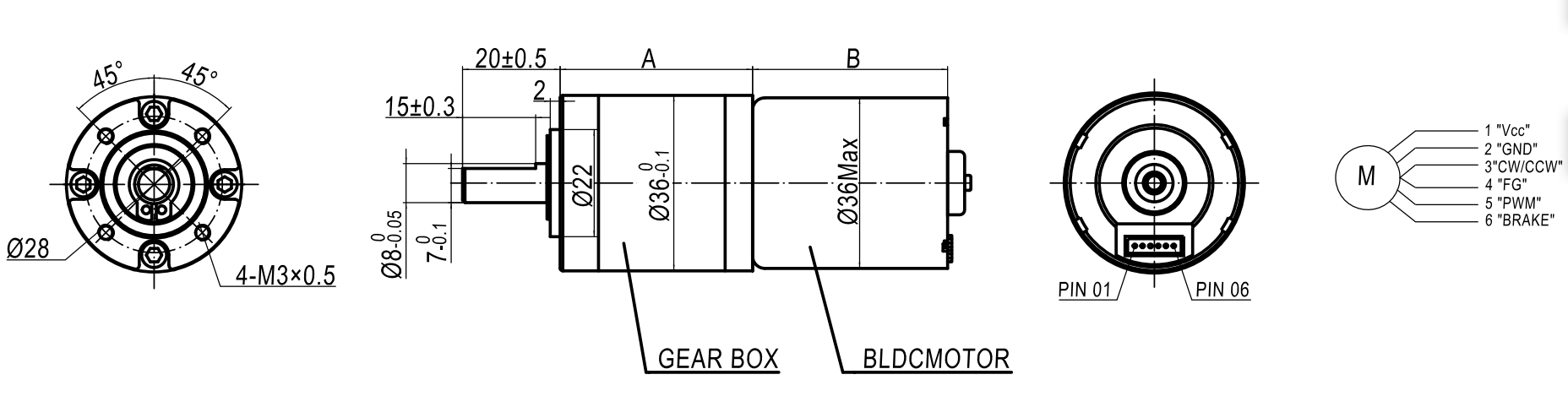

GMP36 (Brushless Type)

A part: Gearbox length (Reference Gearbox Technical Date)
B part:
- 3626 Length: 26mm
- 3630 Length: 30mm
- 3640 Length: 40mm
- 3650 Length: 50mm
- 3657 Length: 57mm

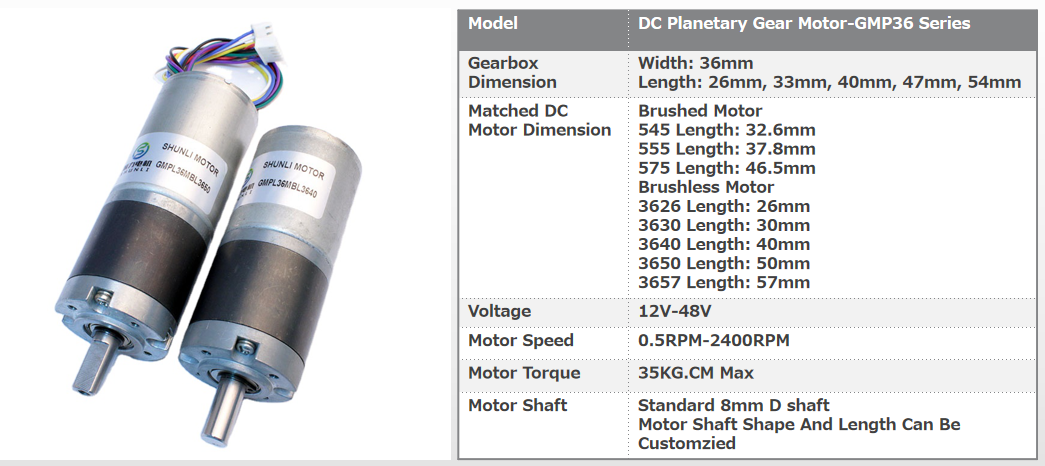

Reference Datasheet

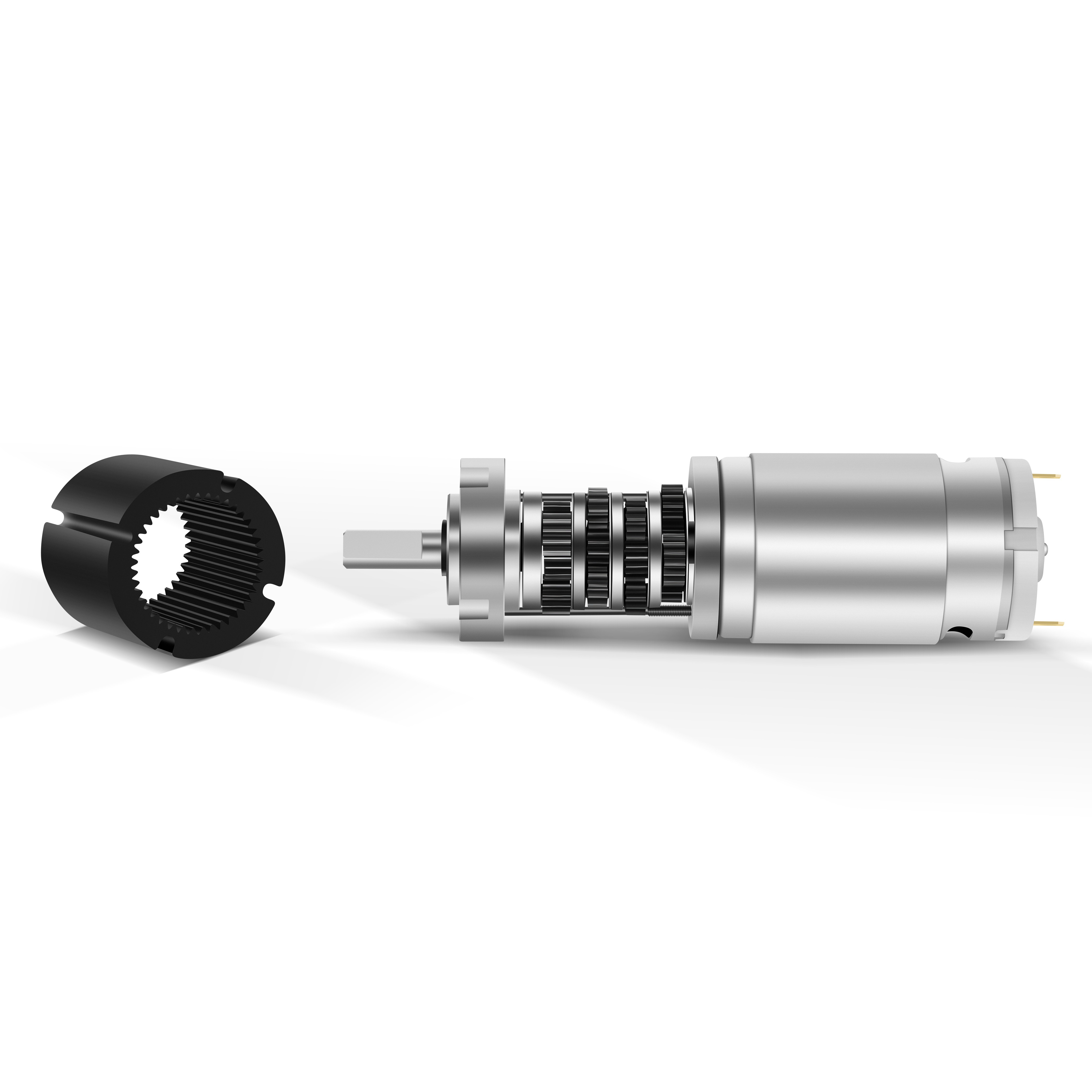

Gearbox Technical Date

Number of stages	1	2	3	4	5
Ratio	3.7K / 5.2K	13.7K / 19.2K / 27K	51K / 71K / 100K / 139K	189K / 264K / 369K / 516K / 721K	699K / 977K / 1367K / 1911K / 2672K / 3736K
Gearbox Length “L” (mm)	26	33	40	47	54
Max. Rated Torque	5.0 Kgf.cm	10.0 Kgf.cm	20.0 Kgf.cm	25.0 Kgf.cm	30.0 Kgf.cm
Max. Gear Breaked Torque	15.0 Kgf.cm	30.0 Kgf.cm	60.0 Kgf.cm	75.0 Kgf.cm	90.0 Kgf.cm
Gearbox Efficiency	80%~92%	70%~80%	60%~70%	50%~60%	40%~50%

Application

Certification

Customer Evaluation

Our Company

Established in 2005, our factory is a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures, and are exported to more than 50 countries and regions at home and abroad.

Recommend Product

FAQ

1Are you trading company or manufacturer?

We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.

2What is the payment term for a new customer?

We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.

3I can't find a suitable motor on your website, can you customize the motor for me?

Yes, we can customize a suitable motor according to our customer's requirements.

4Do you have certificates for the motors?

Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.

5How is your Quality Control?

We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.

Looking forward to your feedback!
