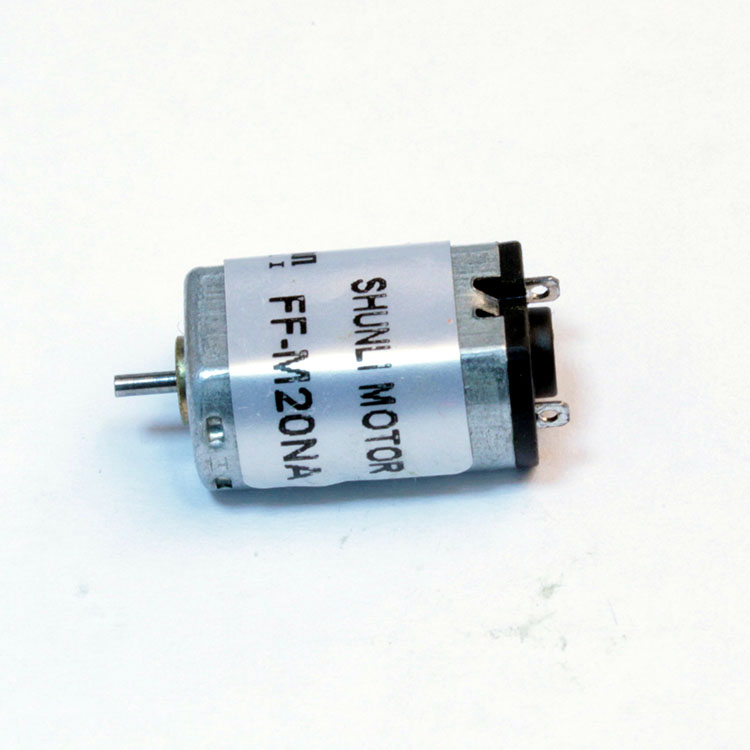

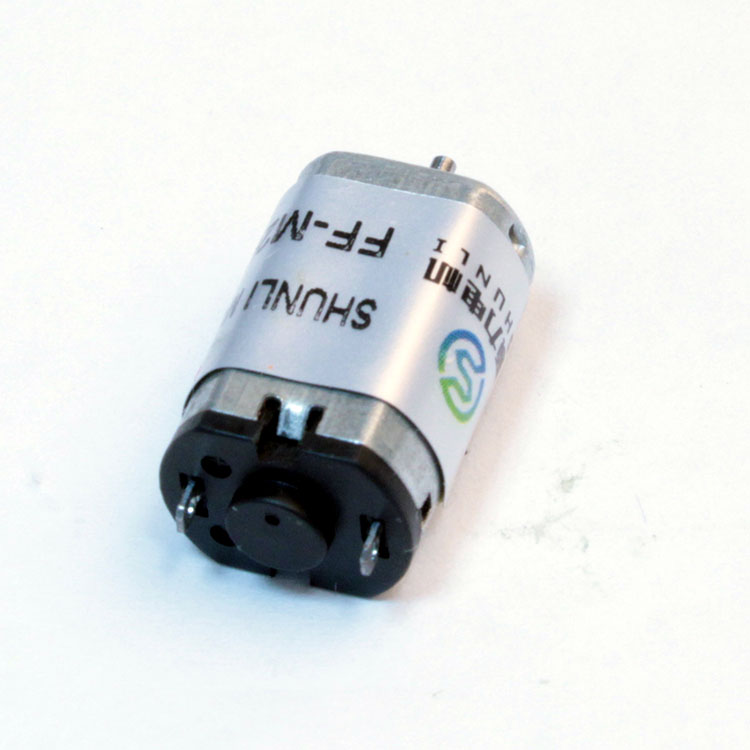

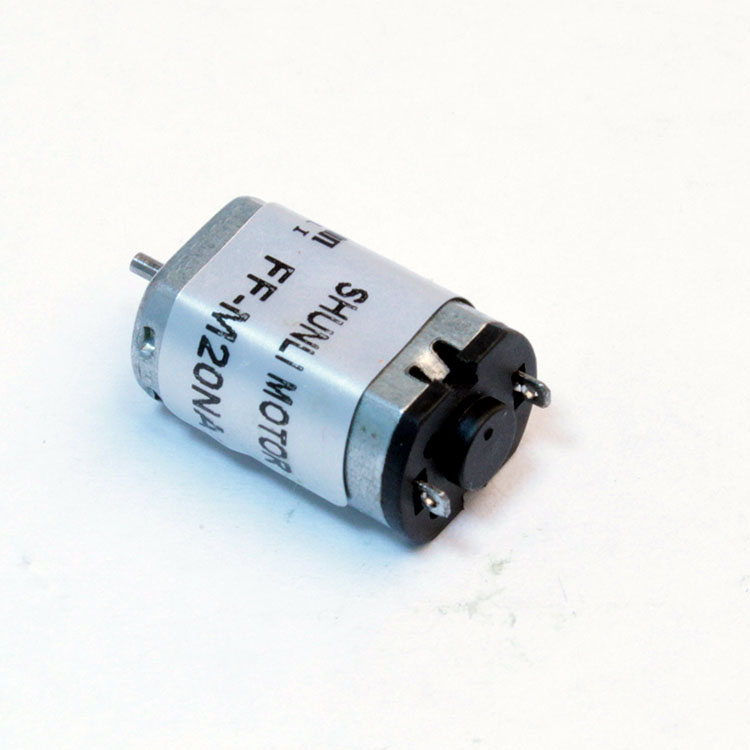

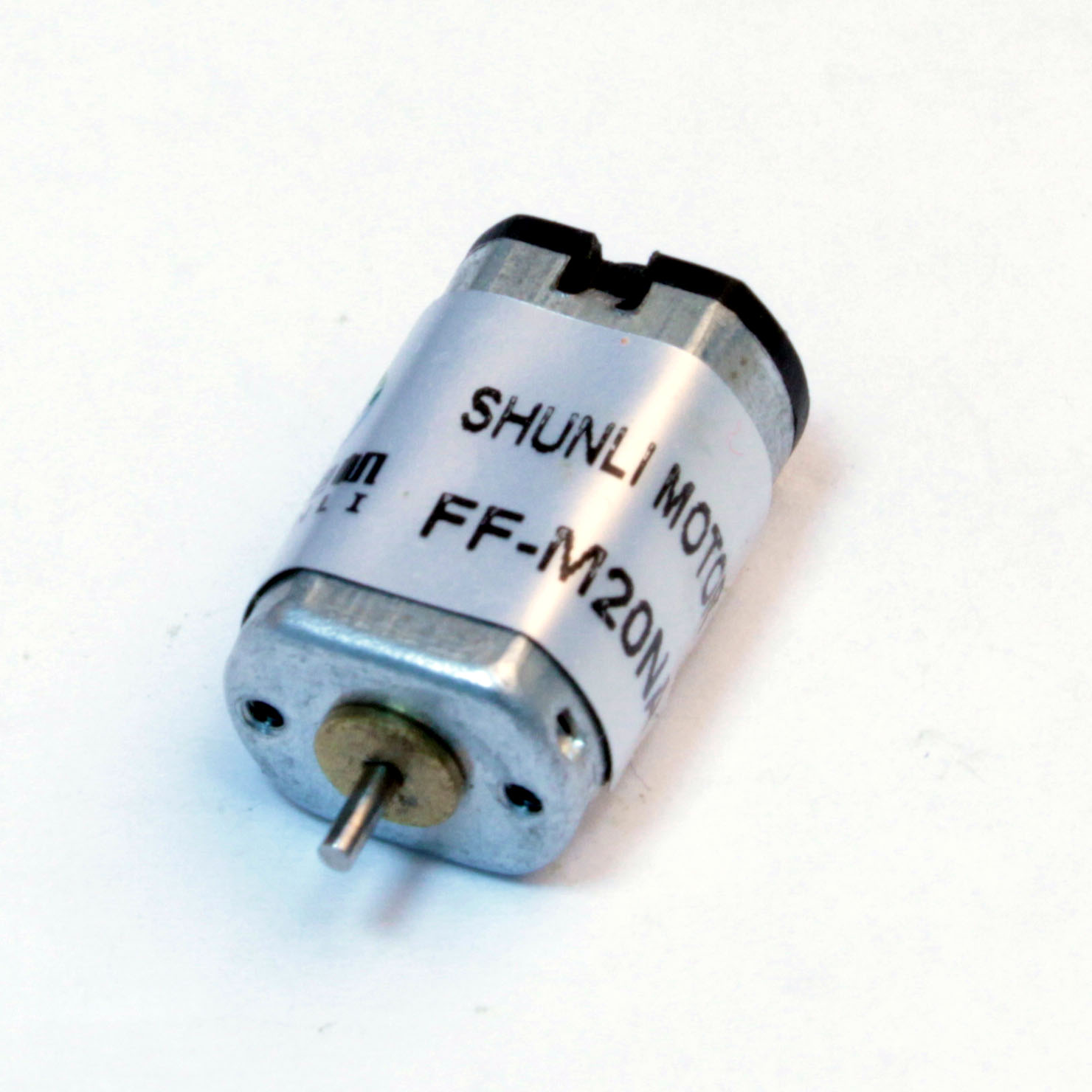

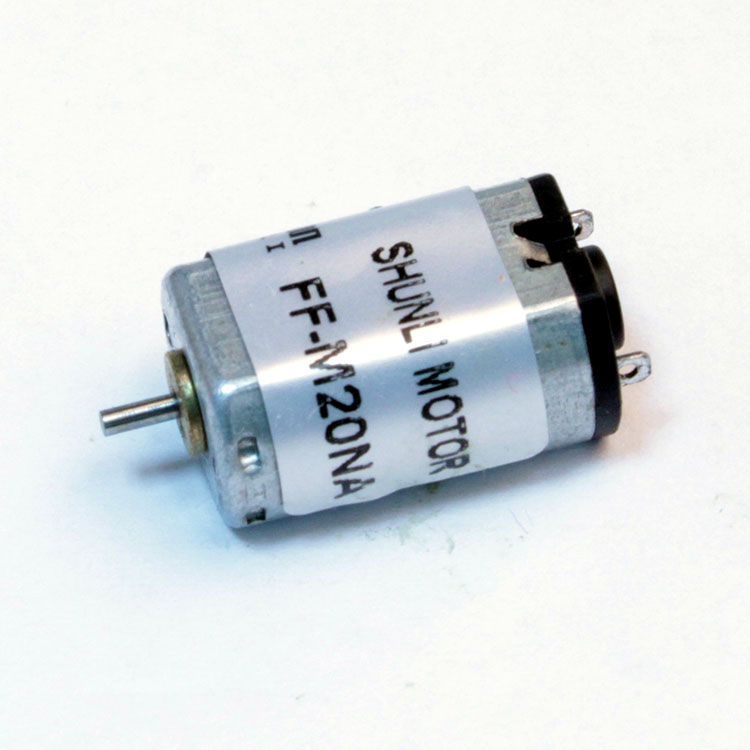

Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance

Product Description

Product Showcase & Promotion
Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance
Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance
Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance
Product Description
Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance
PMDC Motor Technical Specifications
PMDC Motor Model Rated Voltage No-Load Rated Stall
Operating Range (V) Nominal Speed (RPM) Current (mA) Speed (RPM) Current (mA) Torque (mN.m / gf.cm) Power (W) Current (mA) Torque (mN.m / gf.cm)
FF-M20VA 8130 2.0 ~ 3.0 3VDC 15200 45 11800 160 0.16 / 1.6 0.19 550 0.69 / 7
7170 1.5 - 3.0 2VDC 8000 25 6000 75 0.09 / 0.9 0.06 230 0.35 / 3.6
10100 1.5 ~ 4.0 2.8VDC 18000 50 14800 190 0.2 / 2 0.3 880 1.1 / 11
Application Scope
Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance
Factory Profile
Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance

Our factory has been established in 2005. It's a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures. The products are exported to more than 50 countries and regions at home and abroad.

Production Process
Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance
Quality Control & Certifications

Our factory has introduced dozens of advanced production equipment and testing instruments from Germany, Japan, Switzerland and other countries to strictly control the quality of each motor.

Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance
Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance
Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance
Frequently Asked Questions
1. Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors with more than 14 years of experience.
2. What is the payment term for new customers?
We support secure online transaction orders which allow payment via Mastercard, Visa, etc. Customers can also make payments using PayPal or T/T bank transfers.
3. I cannot find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customers' specific requirements.
4. Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have other specific certificate requirements, we can apply for them for you.
5. How is your Quality Control?
We have professional inspection staff on every production line process. After finishing the motor assembly, we use testing equipment to inspect it, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers.
6. What are the typical voltage options for the M20 micro DC motor?
The M20 micro DC motor operates within a range of 1.5V to 4.0V, with nominal options commonly available at 2V, 2.8V, and 3V DC depending on the application requirements.
