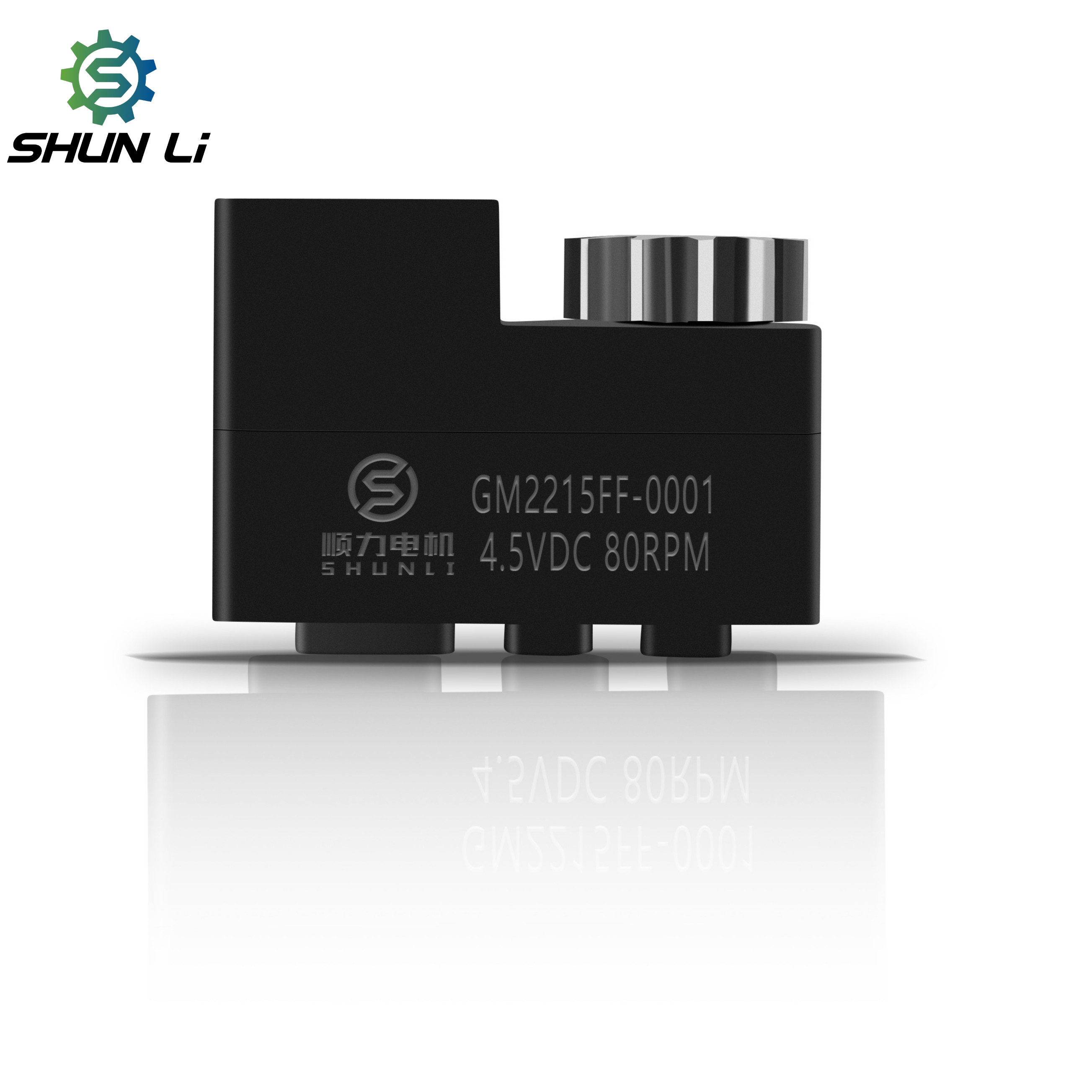

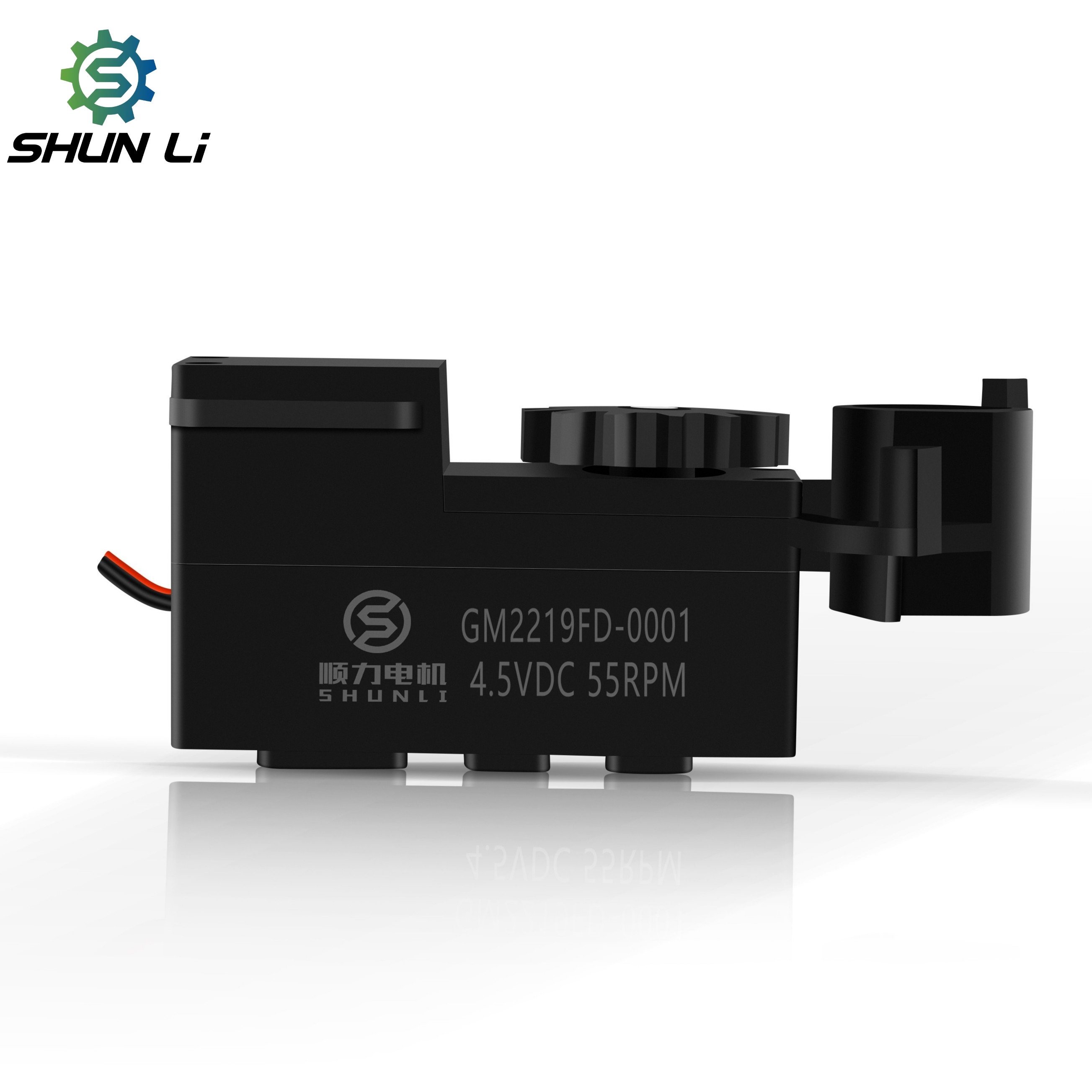

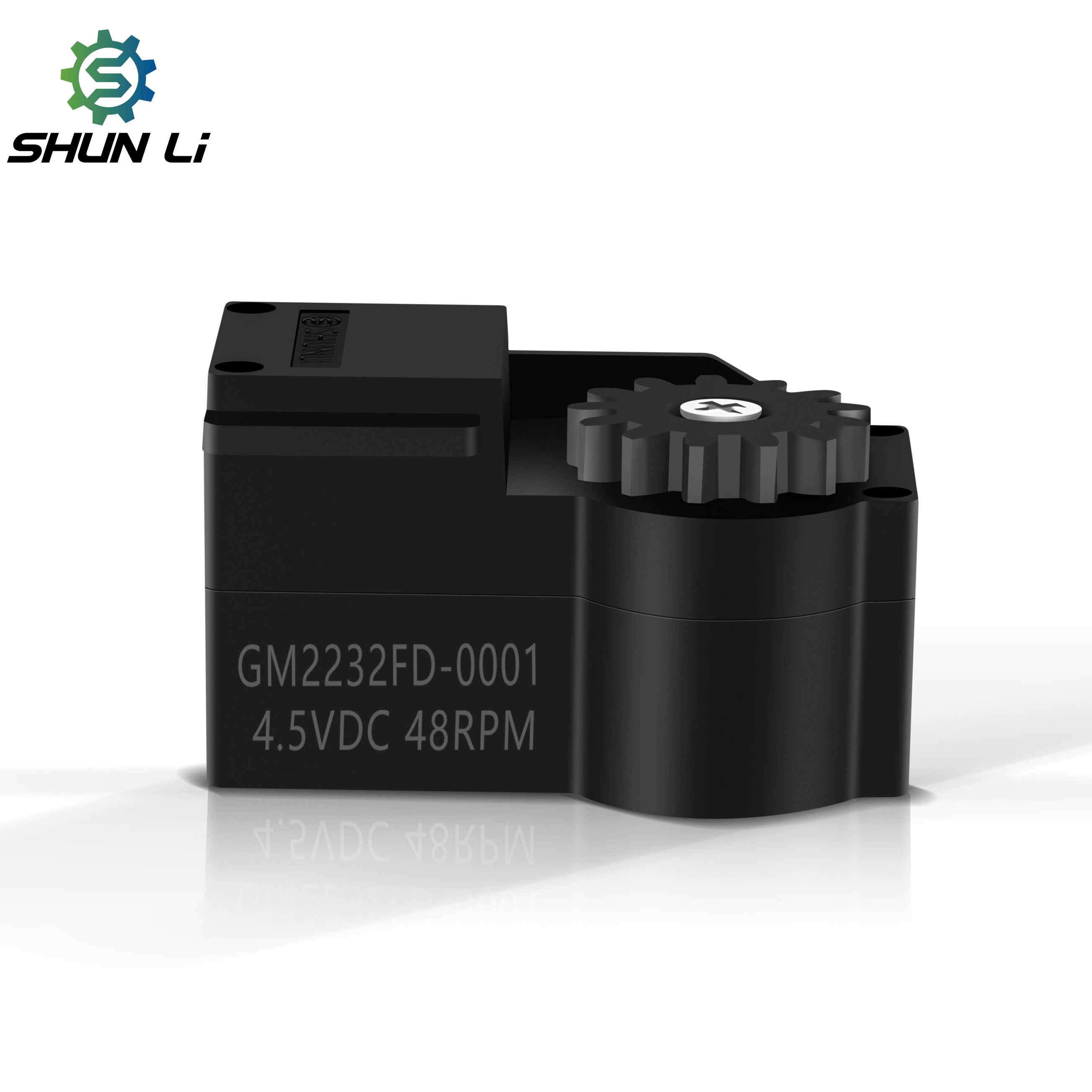

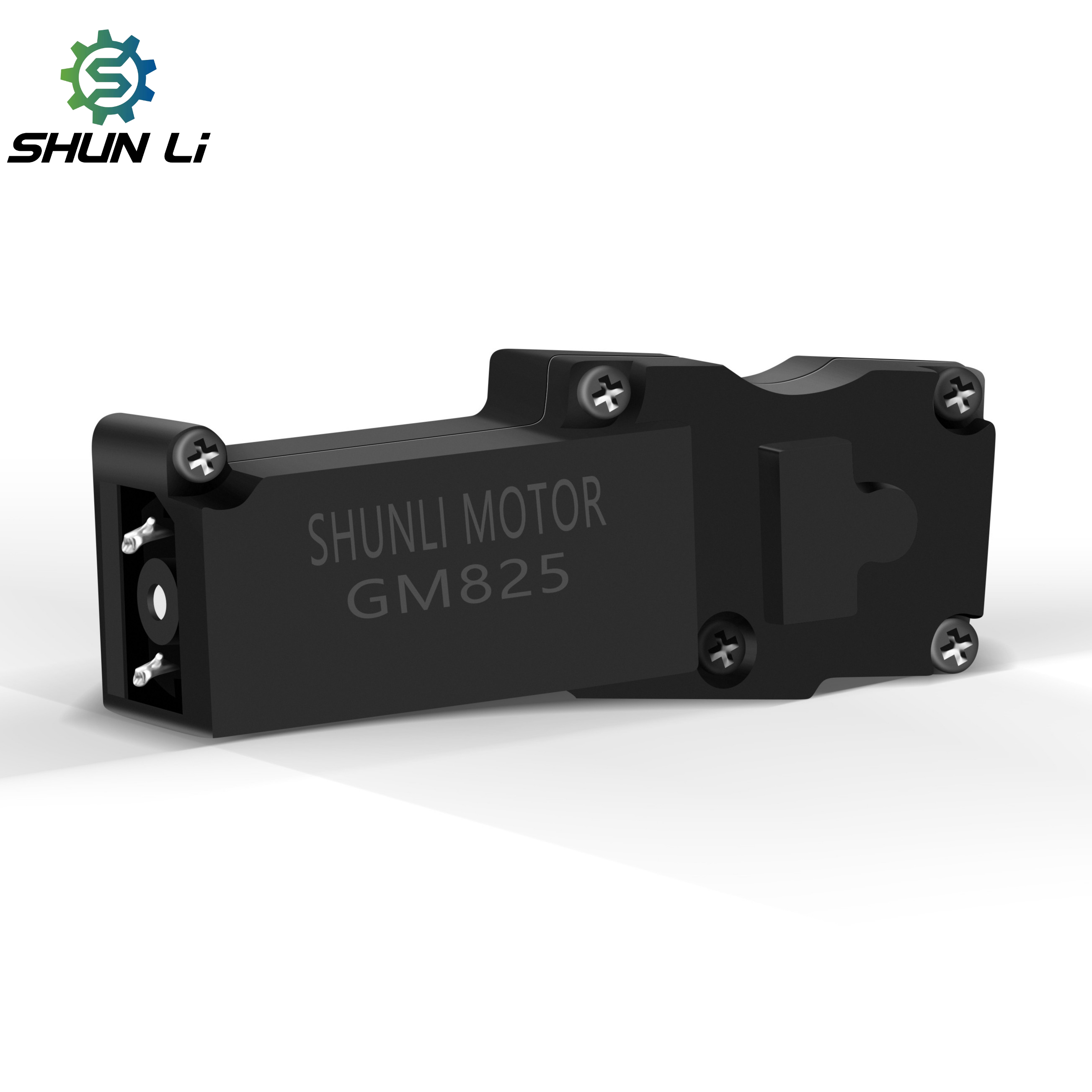

4.5v DC Motor with Gearbox,dc Gear Motor for Door Lock
4.5v DC Motor with Gearbox,dc Gear Motor for Door Lock
4.5v DC Motor with Gearbox,dc Gear Motor for Door Lock
4.5v DC Motor with Gearbox,dc Gear Motor for Door Lock
4.5v DC Motor with Gearbox,dc Gear Motor for Door Lock
1 / 5
4.5v DC Motor with Gearbox,dc Gear Motor for Door Lock
4.5v DC Motor with Gearbox,dc Gear Motor for Door Lock
4.5v DC Motor with Gearbox,dc Gear Motor for Door Lock
4.5v DC Motor with Gearbox,dc Gear Motor for Door Lock
4.5v DC Motor with Gearbox,dc Gear Motor for Door Lock

4.5v DC Motor with Gearbox,dc Gear Motor for Door Lock

Send Inquiry

Product Description

Smart Lock Motor Overview

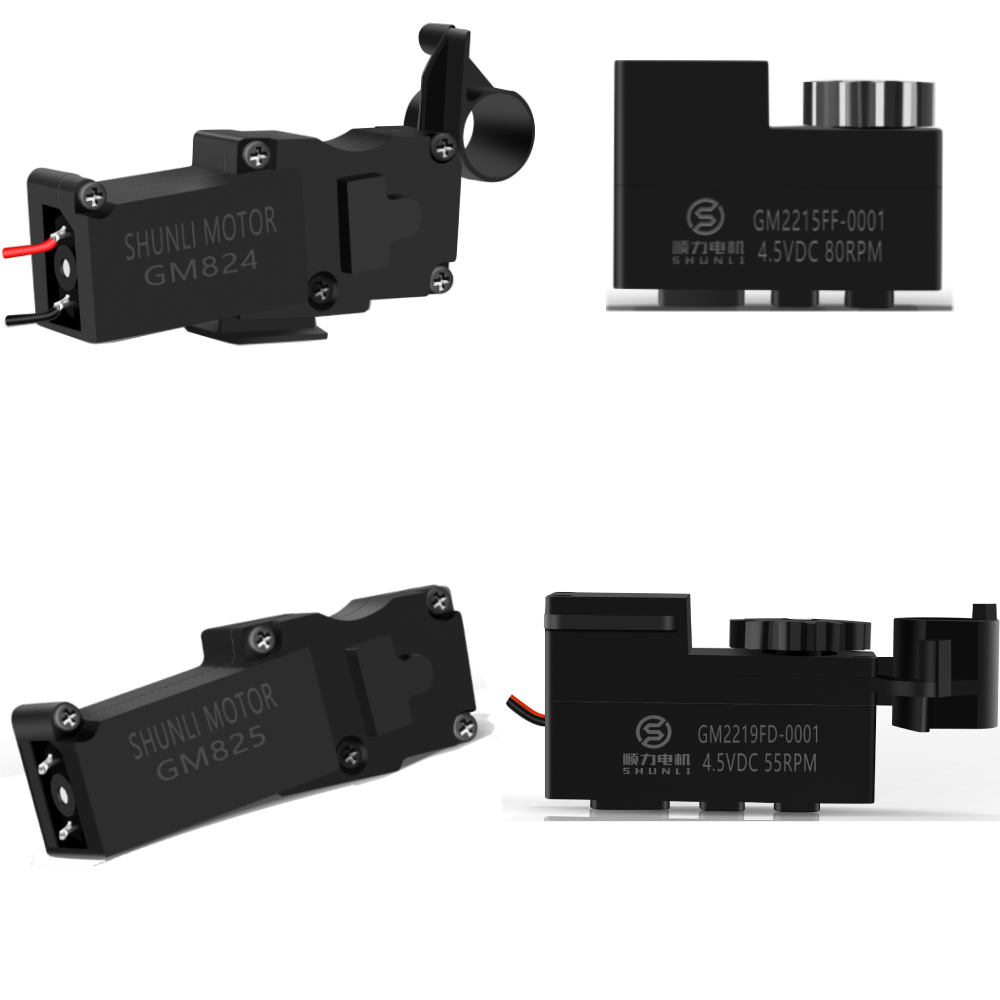

Smart Lock Motor Features
Product Model Smart Lock Motor
Gearbox Size Width: 10mm, Length: 7mm
Dimensions of DC Motor M10 Length: 12.5mm / M20 Length: 15mm
Speed 40RPM - 100RPM
Voltage 1.5V - 6V
Torque 0.5KG.CM Max
Motor Shaft Standard: 1mm plastic shaft (The shape and length of the motor shaft can be customized)
Support Customization The transmission dimensions and motor parameters can be fully customized

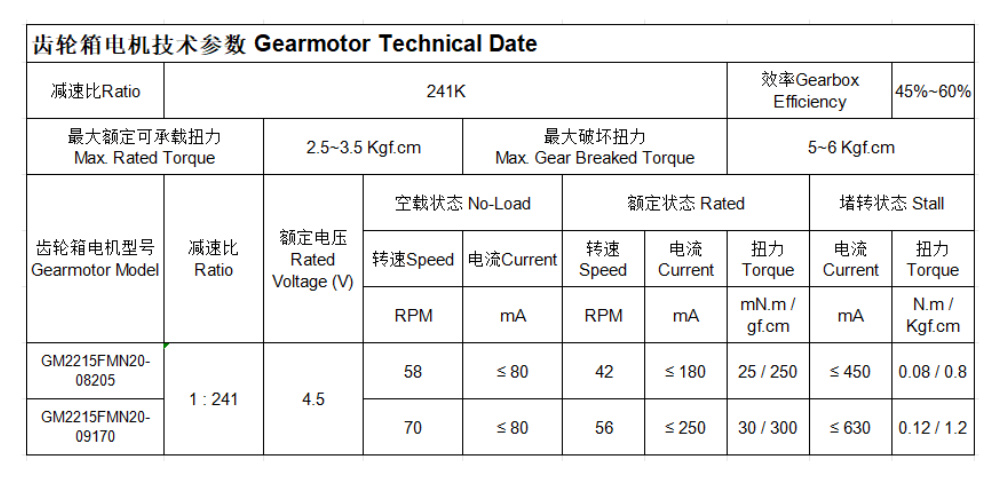

Technical Drawing and Parameters
Product Application & Details
Application Gallery 1
Application Gallery 2
Application Gallery 3
Application Gallery 4
Application Gallery 5
Application Gallery 6
Frequently Asked Questions
Q Are you a trading company or a manufacturer?
We are a professional manufacturer specializing in micro DC motors and DC gear motors with extensive production experience.
Q What is the payment term for a new customer?
We accept secure online transactions via major credit cards (MasterCard, Visa, etc.), PayPal, and wire transfers (T/T).
Q I cannot find a suitable motor on your website, can you customize the motor for me?
Yes, we can design and customize a suitable motor solution based on your specific voltage, speed, torque, and dimension requirements.
Q Do you have certificates for the motors?
Yes, our motor products conform to CE, FCC, ISO, and other key standards. We can also assist in applying for additional certifications if required.
Q How do you handle quality control?
We implement rigorous quality checks at every step of the production line. Final products undergo fully comprehensive testing, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Chambers, and Noise Testers.
Q Can I request samples before placing a bulk order?
Yes, sample testing is available to verify technical specifications and build quality prior to committing to mass production.
