BLDC MOTOR Terminations
| PIN NO. | PIN Arrangement |
|---|---|
| 1 | VCC |
| 2 | FG |
| 3 | CW/CCW |
| 4 | GND |
| 5 | PWM |

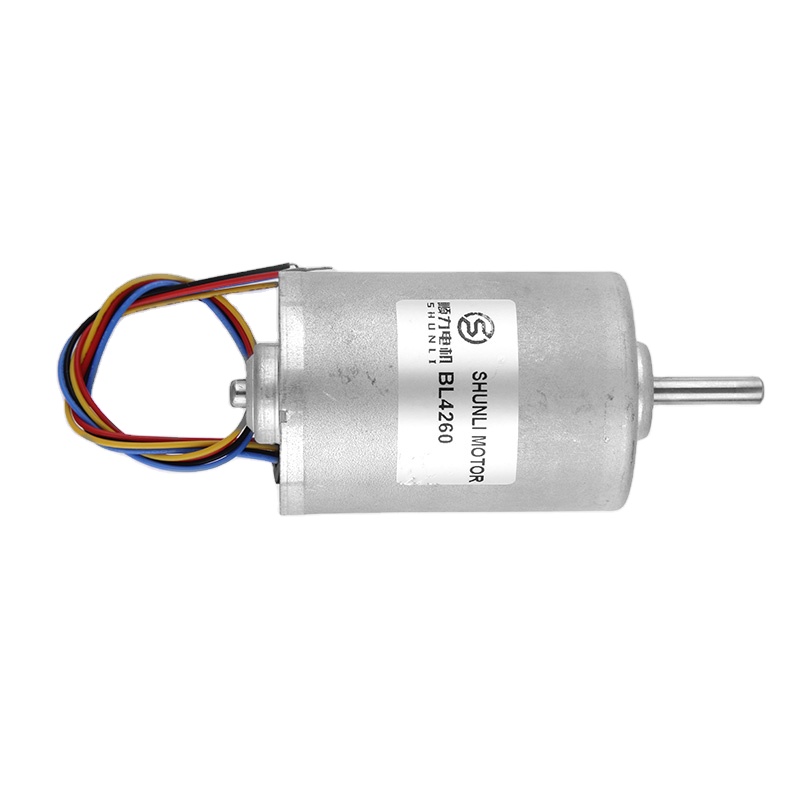

This permanent magnet brushless DC motor supports input voltages of 12V, 18V, and 24V, making it highly versatile for various electrical systems.
Depending on the specific configuration and voltage applied, the motor can operate at reference speeds of 1500 RPM, 3000 RPM, and up to 4000 RPM.
It is widely used in washing machines, RC planes, DIY technical tools, fans, robotics, water pumps, and other devices requiring a high-torque permanent magnet motor.
The motor features a 5-pin termination layout: Pin 1 (VCC), Pin 2 (FG), Pin 3 (CW/CCW for direction control), Pin 4 (GND), and Pin 5 (PWM for speed adjustment).
Yes. Motor specifications can be customized to fit your specific application requirements. Please reach out to share your custom requirements.
