Luv Motors
1 / 5

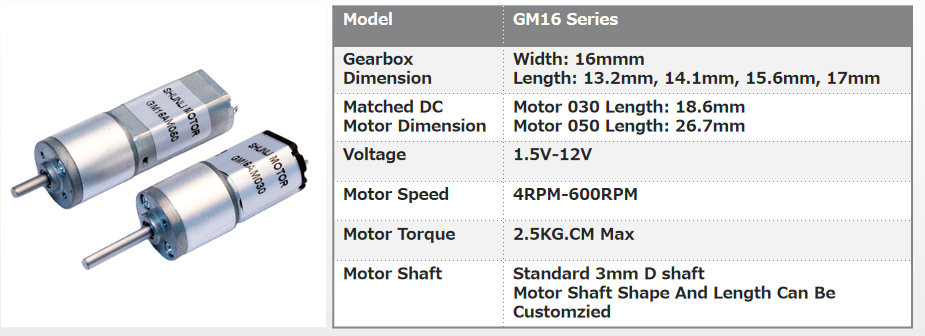

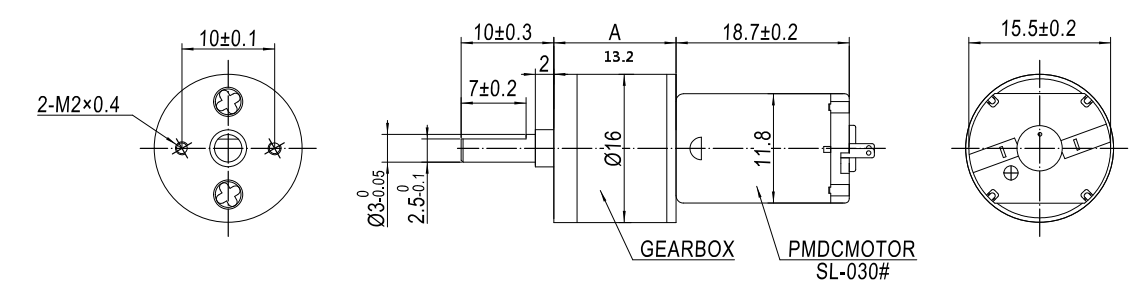

GM16AM030

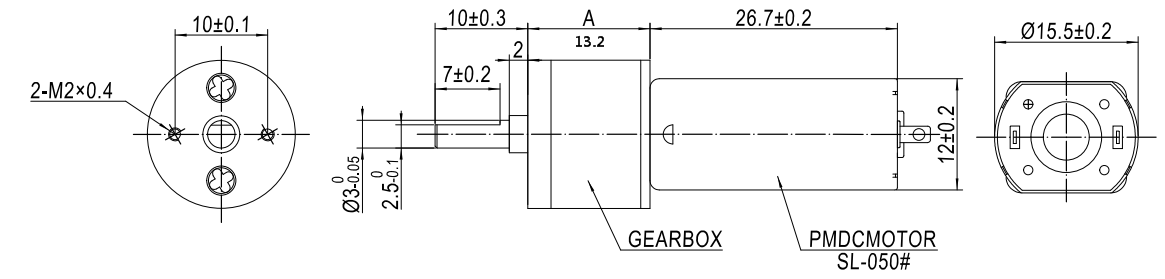

GM16AM050
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | N.m / Kgf.cm | mA | N.m / Kgf.cm | |||
| GMP16M030-100K | 1 : 100 | 3.7 VDC | 100 | ≤ 80 | 72 | ≤ 300 | 0.03/0.3 | ≤ 700 | 0.11/1.1 |
| GMP16M050-300K | 1 : 300 | 3.7 VDC | 50 | ≤ 200 | 40 | ≤ 650 | 0.1/1.0 | ≤ 3000 | 0.55/5.5 |
| Number of stages | 4 | 5 | 6 | 7 |
|---|---|---|---|---|
| Ratio | 25K / 30K / 35K / 42K | 70K / 85K / 100K / 119K | 143K / 169K / 200K / 239K / 285K | 300K / 400K / 568K / 800K |
| Gearbox Length "A"(mm) | 13.2 | 14.1 | 15.6 | 17.0 |
| Max. Rated Torque | 0.6 Kgf.cm | 1.0 Kgf.cm | 1.5 Kgf.cm | 2.0 Kgf.cm |
| Max. Gear Broke Torque | 1.5 Kgf.cm | 3.0 Kgf.cm | 4.0 Kgf.cm | 5.0 Kgf.cm |
| Gearbox Efficiency | 60%~70% | 55%~60% | 50%~55% | 45%~50% |
We are a factory specialized in producing motors for more than 14 years. Our professional R&D team and mature management ensure a seamless purchasing experience.
To confirm premium quality, each production process is carefully checked from incoming material to final shipment. Quality is the core basis of our development.
Highly credible gold seller with verified industry reputation.
100% on-time delivery rate to guarantee your projects arrive on schedule.
Standard samples will be produced within 2 weeks. Customized samples will be produced within 3 weeks.
Timely response: all client messages and inquiries will be replied to within 2 hours.
Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors with over 14 years of manufacturing experience.
What is the payment term for a new customer?
We can set up an online assurance order, allowing payment via MasterCard, Visa, PayPal, or TT according to your convenience.
I cannot find a suitable motor on your website. Can you customize a motor for me?
Yes, we can customize and configure a suitable motor based on your specific requirements and technical parameters.
Do you have certificates for your motors?
Yes, our products carry CE, FCC, ISO, and other standard certifications. We can also apply for additional specific certificates if required.
How do you manage your Quality Control?
We have dedicated testing staff at each stage of the production line. Once the motor is fully assembled, it undergoes comprehensive testing via machinery including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Chambers, and Noise Testers.
What is the typical lead time for samples?
Standard samples are generally completed within 2 weeks, whereas customized or modified samples are fully developed and produced within 3 weeks.
