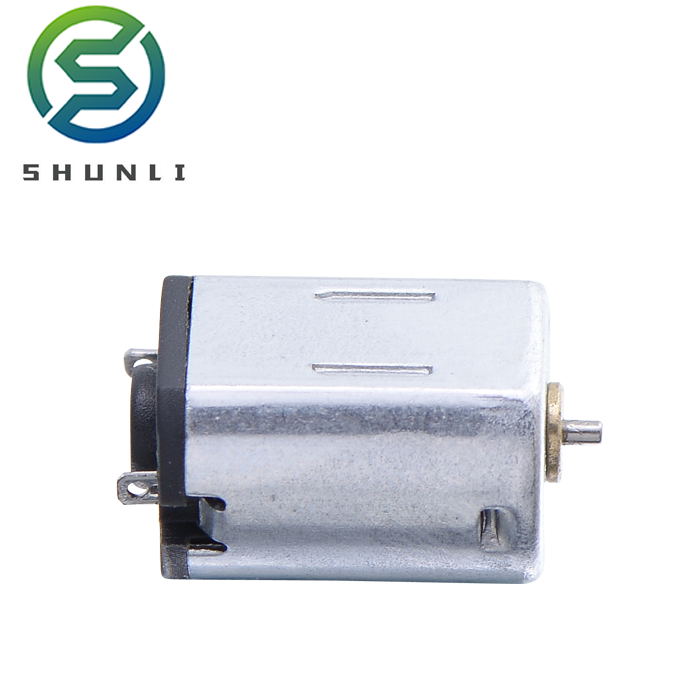

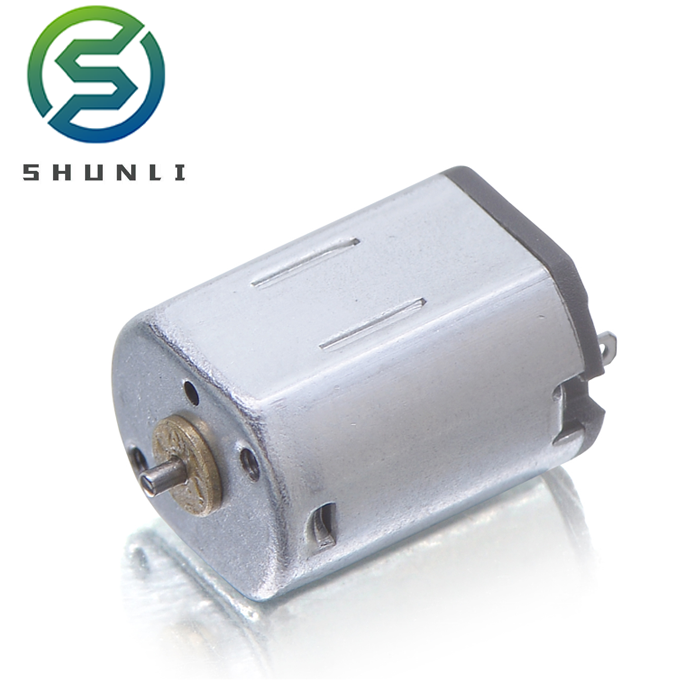

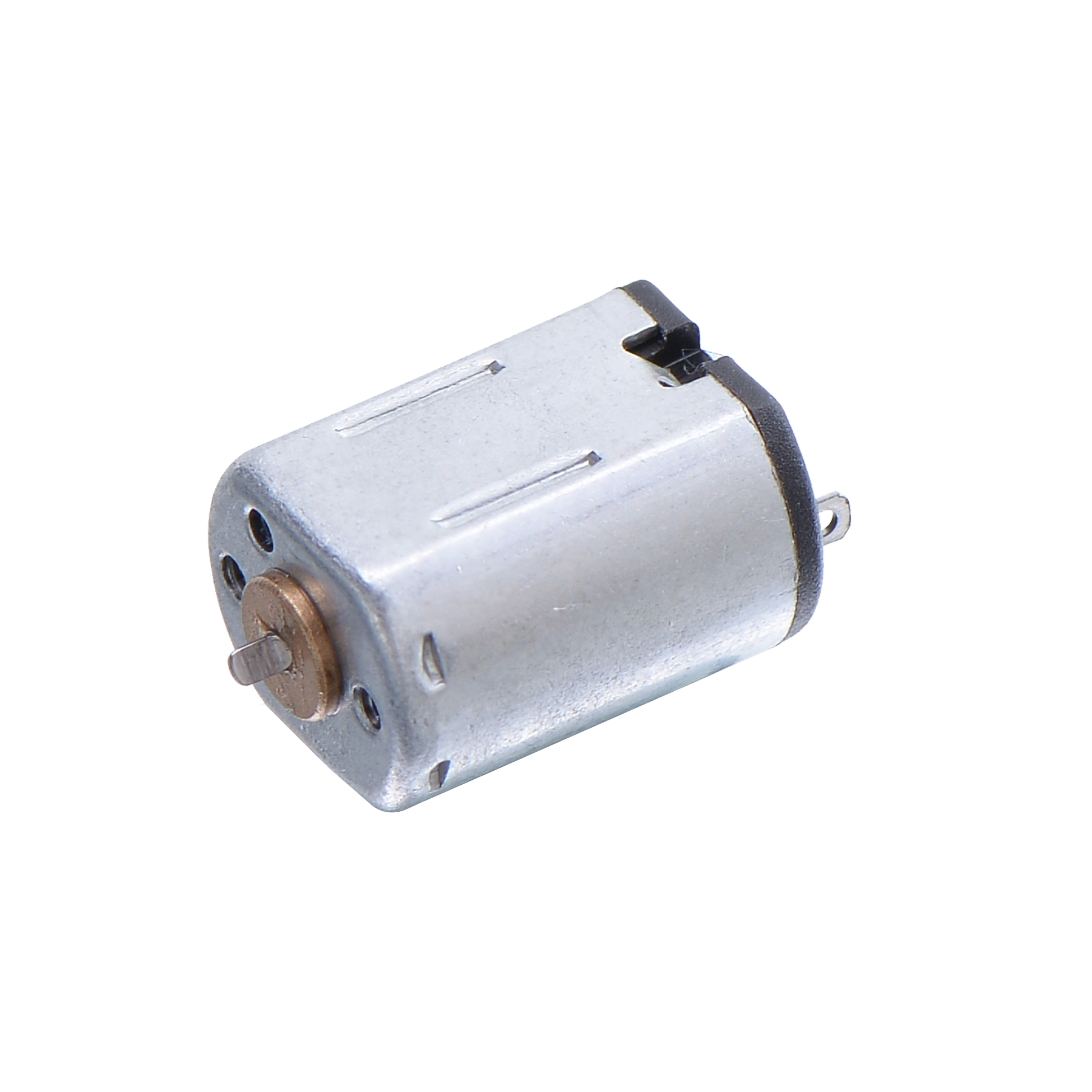

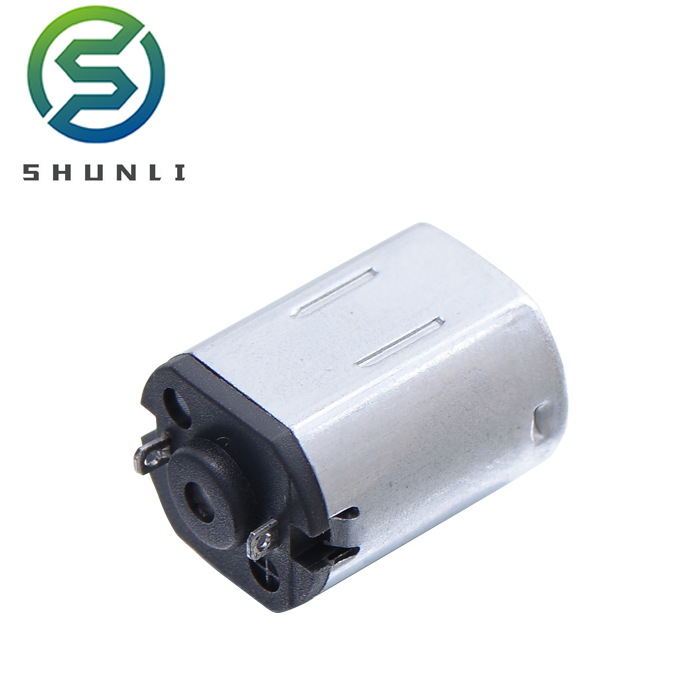

Customized 1.5v 3v 4.5v SFF-N20VA Brush Lock Mini Electric Motor

Our motors have long life, high efficiency and good stability. Insert the drive inside the motor to capture data more accurately.

Product Description

PMDC MOTOR Technical Data
PMDC MOTOR Model		Rated Voltage (V)		No-Load		Rated				Stall
PMDC MOTOR Model		Operating Range	Nominal	Speed (RPM)	Current (mA)	Speed (RPM)	Current (mA)	Torque (mN.m / gf.cm)	Power (W)	Current (mA)	Torque (mN.m / gf.cm)
FF-N20VA	05240	3.0~12.0	12 VDC	16100	15	12240	60	0.3/3	0.37	210	1.2/12
FF-N20VA	08260	2.0~5.0	5 VDC	14600	30	11800	110	0.26/2.6	0.31	470	1.3/13
FF-N20TA	2818	0.8~1.5	12 VDC	34000	70	31000	1140	0.2/2	0.64	6000	1.6/16

Applications

Certifications

Why Choose Us

1. Professional Production

We are a factory specializing in producing motors for more than 14 years. A professional R&D team and mature management system ensure a pleasant purchasing experience.

2. Strict Quality Control

To ensure maximum quality, every stage from raw material receipt to shipment is carefully checked. Quality is the basis of our development.

Our Services

We are a gold seller and in possession of high credibility.

100% on-time delivery rate to confirm your product arrives timely.

Standard samples produced within 2 weeks. Customized samples produced within 3 weeks.

Timely response system ensures your message is replied within 2 hours.

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.

What is the payment term for a new customer?

We can draw up an Ali Assurance Order Online for our new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal, TT, etc.

I cannot find a suitable motor on your website, can you customize the motor for me?

Yes, we can customize a suitable motor according to our customer's specific requirements.

Do you have certificates for the motors?

Yes, we have CE, FCC, ISO, etc. If you require other certifications, we can apply for them on your behalf.

How is your Quality Control?

We have professional inspection staff on every production line process. After finishing the motor assembly, we use dedicated testing machinery, such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
