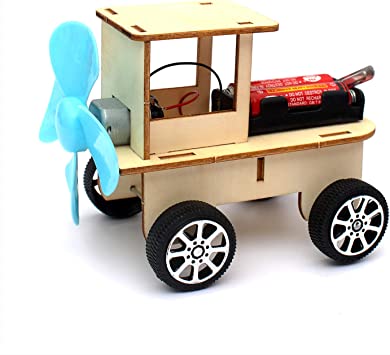

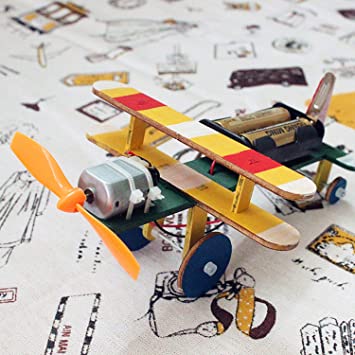

Mini Electric Hobby Motor 3V-12V 25000 RPM powerful magnetic propeller with shaft for toy applications.
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage(V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed (RPM) | Current (mA) | Speed (RPM) | Current (mA) | Torque (mN.m / gf.cm) | Power (W) | Current (mA) | Torque (mN.m / gf.cm) | ||

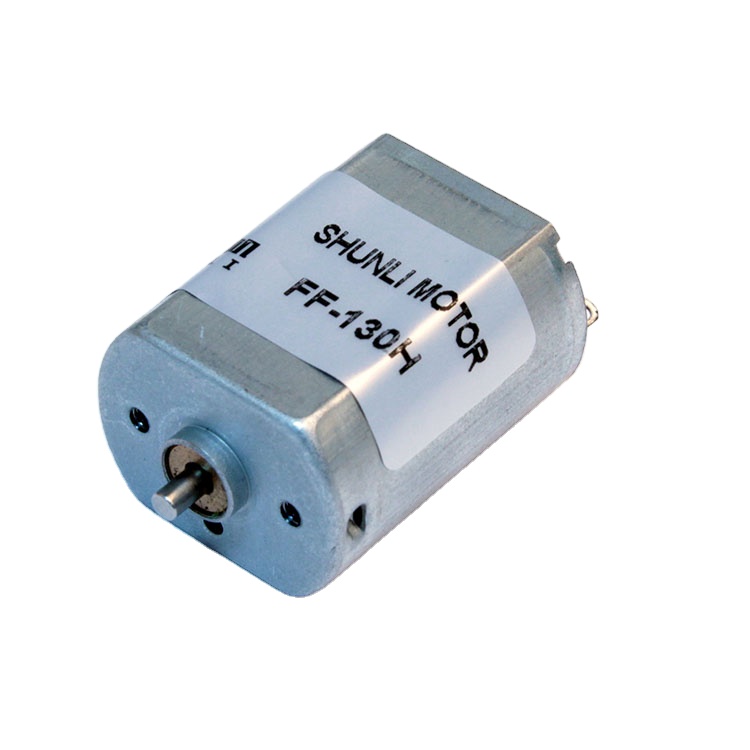

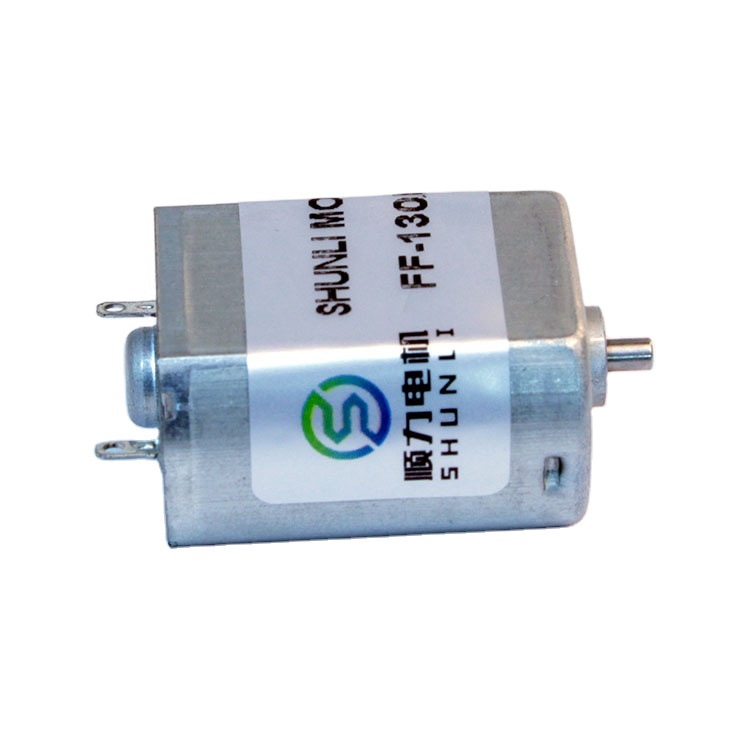

| FF-130PA | 16155 | 2.0~3.0 | 2.3VDC | 4000 | 70 | 2500 | 300 | 1.32 / 13.5 | 13.8 | 760 | 3.92 / 40 |
| 17145 | 3.0~6.0 | 6VDC | 11500 | 100 | 10000 | 390 | 1.27 / 13 | 1.33 | 2300 | 10 / 102 | |
| FF-130SH | 2356 | 1.5~3.0 | 3VDC | 12800 | 270 | 10337 | 1130 | 1.9 / 19.4 | 2.08 | 4750 | 10 / 102 |
| FK-130PH | 07555 | 6.0~9.0 | 7.19VDC | 2700 | 20 | 1999 | 50 | 0.8 / 8.16 | 0.17 | 150 | 3 / 30.6 |
*Please check the detailed parameters in the technical specification sheet above.
