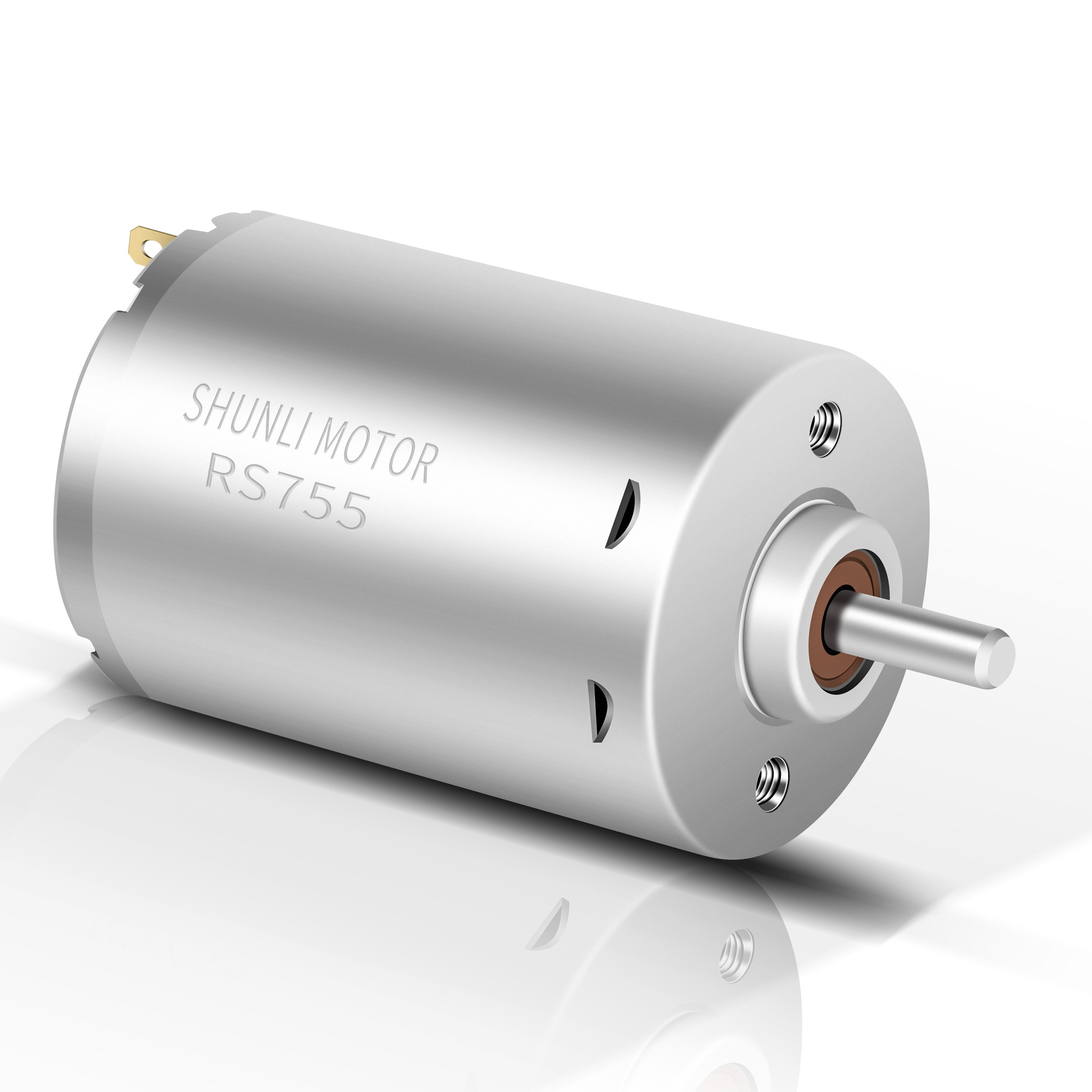

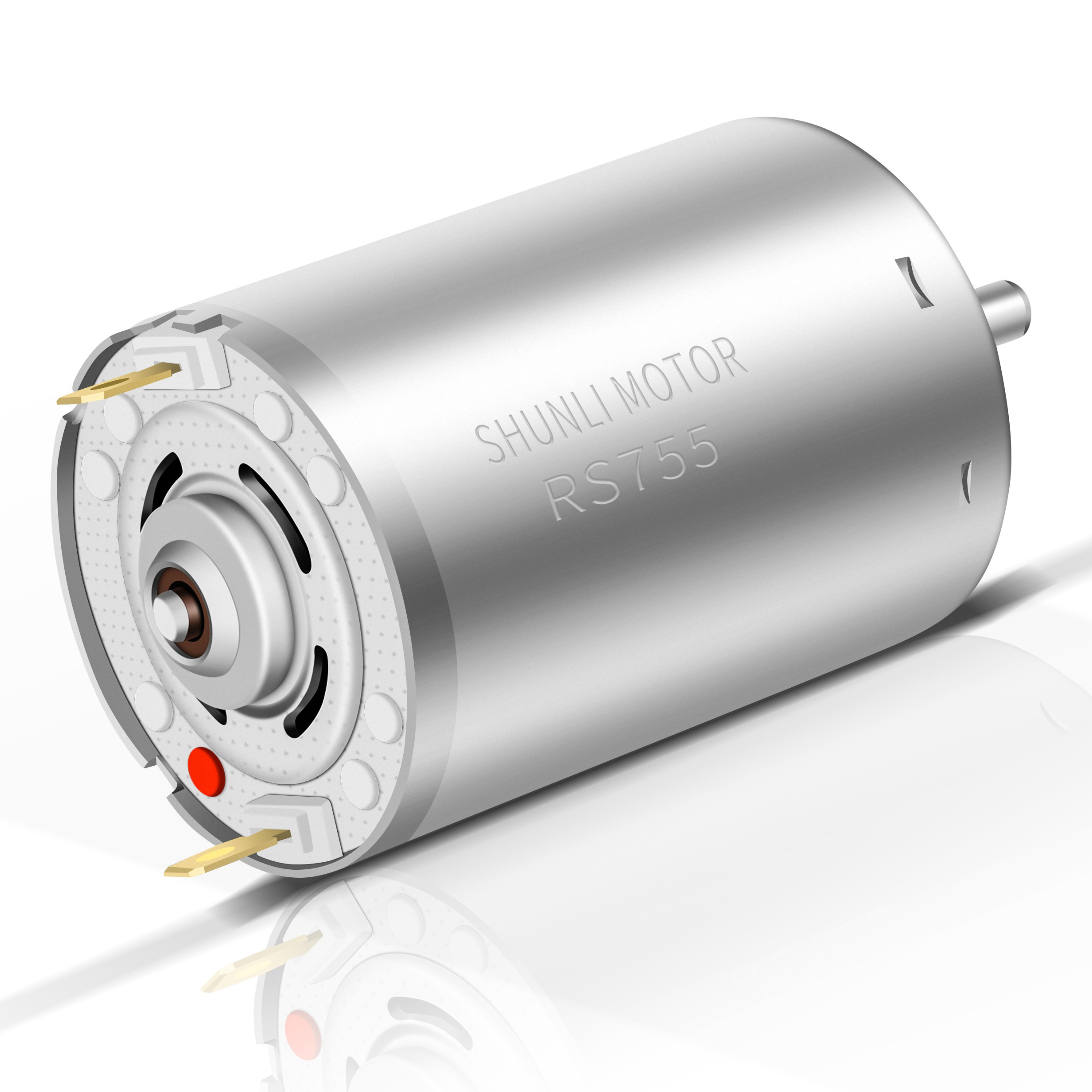

12v 24v 10W 100W DC Motor High Speed 15000 RPM for Air Pump/RC Model/Cordless Power Tool

DC Motor High Speed for Air Pump/RC Model/Cordless Power Tool

Product Description

12v 24v 10W 100W DC Motor high speed 15000 RPM for Air Pump/RC Model/Cordless Power Tool

Product Details

★ Motor Customized Specification Available.

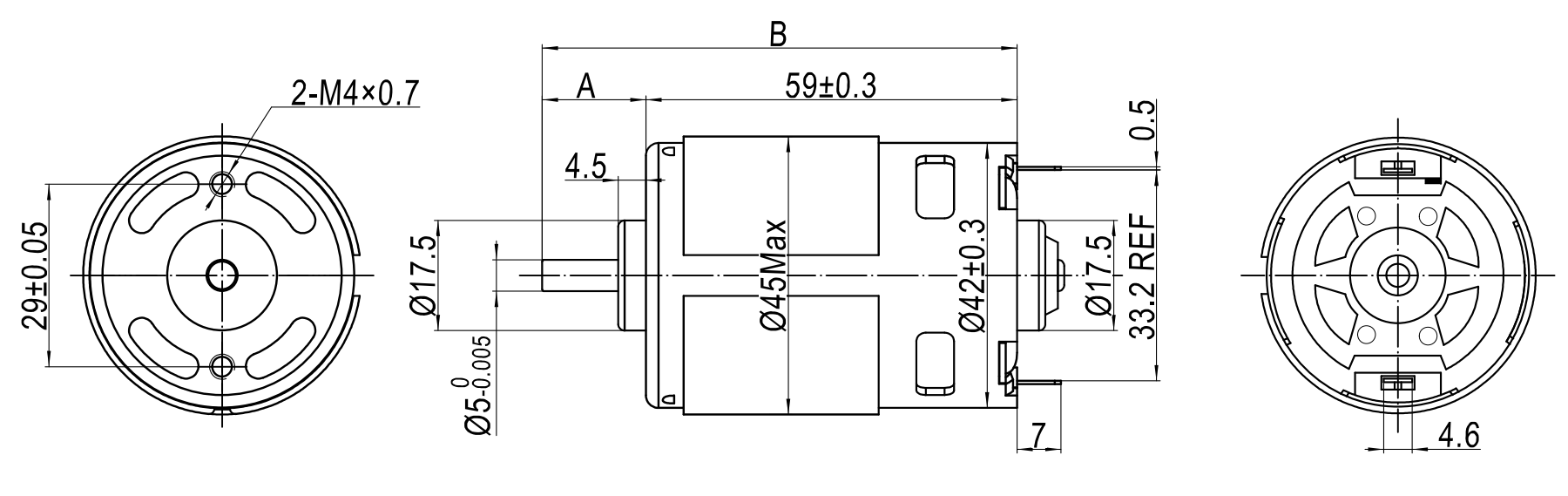

Reference Drawing

RS - 755 H

RS - 775 H

★ The length of shaft can be customized.

Technical Specifications

PMDC MOTOR Technical Data
Model	Rated Voltage (V)		No-Load		Rated				Stall
	Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
	Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-770H	8523R	6.0~12.0	12 VDC	15000	2.2	13177	15.91	81/826.2	111.8	115
RS-775H	25110R	6.0~24.0	24 VDC	3478	0.15	2925	0.75	44.4/452.9	13.35	4.07

Application

Customer Evaluation

Certifications

Why Choose Us

1. Production Strength

We are a factory specialized in producing motors for more than 14 years. With three factories, a professional R&D team, mature management, and experienced engineers, we ensure a seamless and high-quality production experience.

2. Quality Control

In order to confirm quality, every step is carefully checked from receiving raw materials to final shipment. Quality is the basis of our development.

3. Our Service Standards

Gold seller status in possession of high credibility.

100% on-time delivery rate guarantees your products arrive timely.

Standard samples are produced within 2 weeks. Customized samples are produced within 3 weeks.

Timely communication, your messages will be replied to within 2 hours.

Recommend Products

Frequently Asked Questions

Q1: Are you a trading company or a manufacturer?

A: We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.

Q2: What is the payment term for new customers?

A: We support secure online transaction systems. Customers can pay online via major Credit Cards (Visa, MasterCard), PayPal, or wire transfers (T/T).

Q3: I cannot find a suitable motor on your list. Can you customize a motor for me?

A: Yes, we can customize a suitable motor including its voltage, speed, shaft length, and other structural elements according to customer requirements.

Q4: Do you hold certifications for your motors?

A: Yes, we hold certifications such as CE, FCC, and ISO. If you require other specific certifications, we can apply for them to meet your market demands.

Q5: How do you maintain quality control?

A: We have professional quality inspection staff on every production line process. Finished products are thoroughly tested using advanced inspection machines, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Cycle Testers, Temperature Test Chambers, and Noise Testers.

Q6: What is the typical lead time for production?

A: Standard samples are generally prepared within 2 weeks, and customized samples are completed within 3 weeks. Mass production timeline varies depending on the order quantity and product specification.
