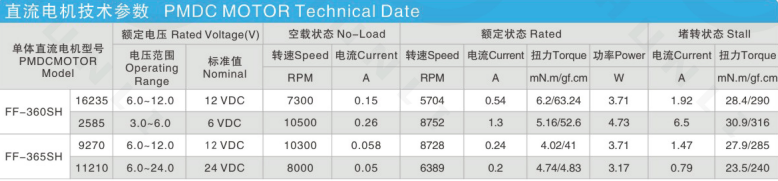

| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PMDC MOTOR Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m / gf.cm) | Power (W) | Current (A) | Torque (mN.m / gf.cm) | ||
| RS-360SH | 16235 | 6.0~12.0 | 12VDC | 7300 | 0.15 | 5704 | 0.54 | 6.2/63.24 | 3.71 | 1.92 | 28.4/290 |
| 2585 | 3.0~6.0 | 6VDC | 10500 | 0.26 | 8752 | 1.3 | 5.16/52.6 | 4.73 | 6.5 | 30.9/316 | |
| RS-365SH | 9270 | 6.0~12.0 | 12VDC | 10300 | 0.058 | 8728 | 0.24 | 4.02/41 | 3.71 | 1.47 | 27.9/285 |
| 11210 | 6.0~24.0 | 24VDC | 8000 | 0.05 | 6389 | 0.2 | 4.74/4.83 | 3.17 | 0.79 | 23.5/240 | |
Established in 2005, this high-tech enterprise integrates the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures, products are exported to more than 50 countries and regions at home and abroad.
