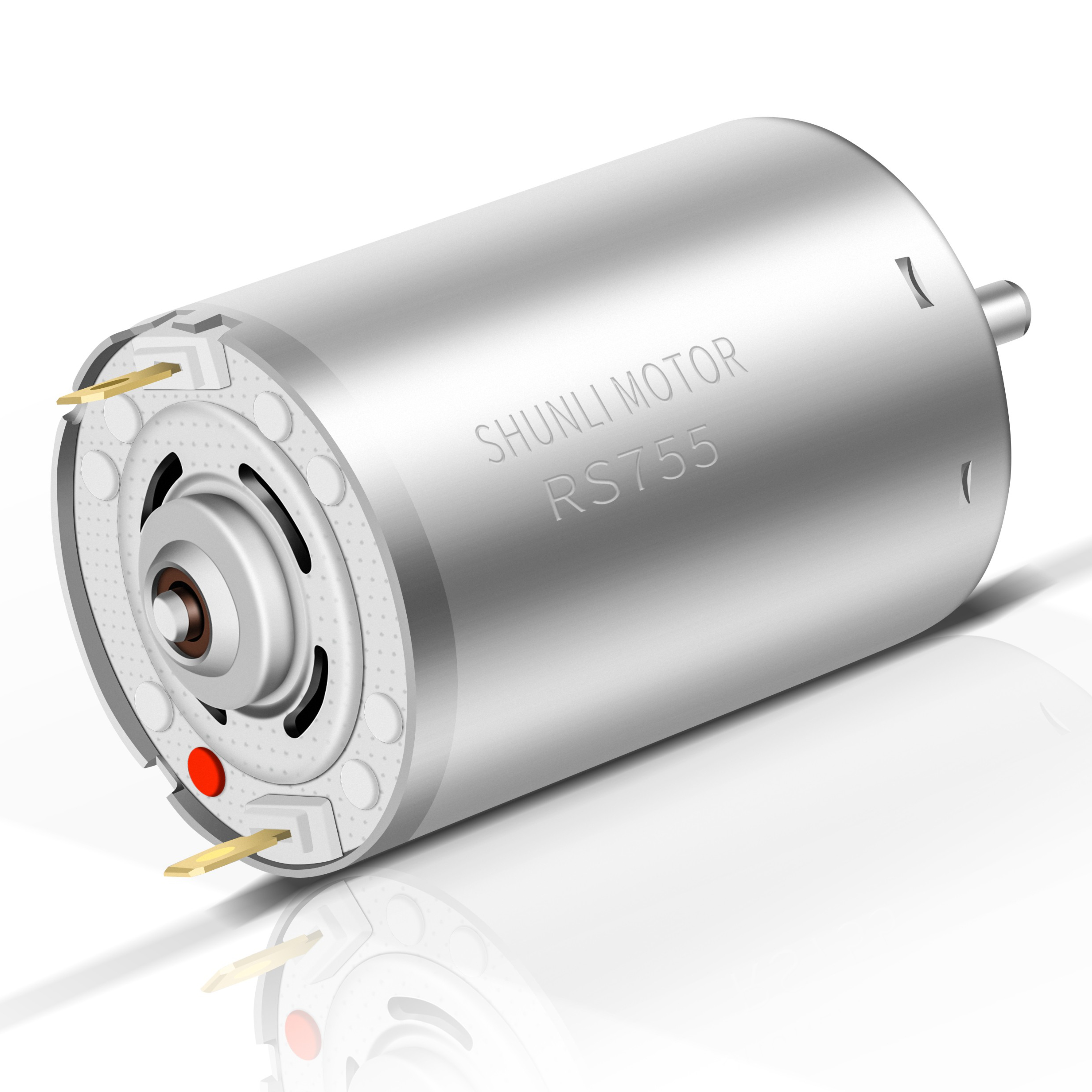

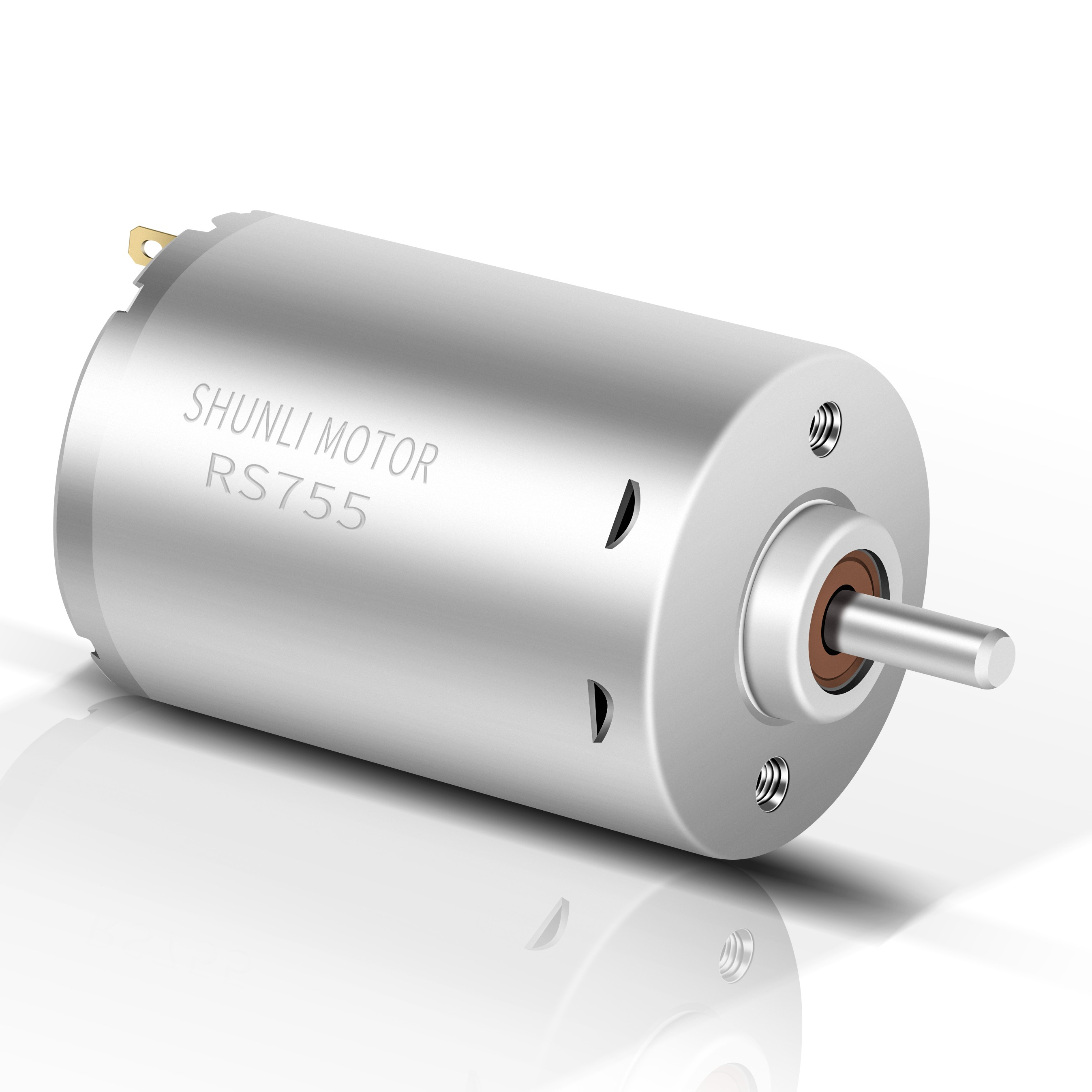

Powerfull 20000rpm rs 775 Mini High Speed 24 Volt Dc Motor

powerfull 20000rpm rs 775 mini high speed 24 volt dc motor

Product Details

Motor Customized Specification, Please contact me.

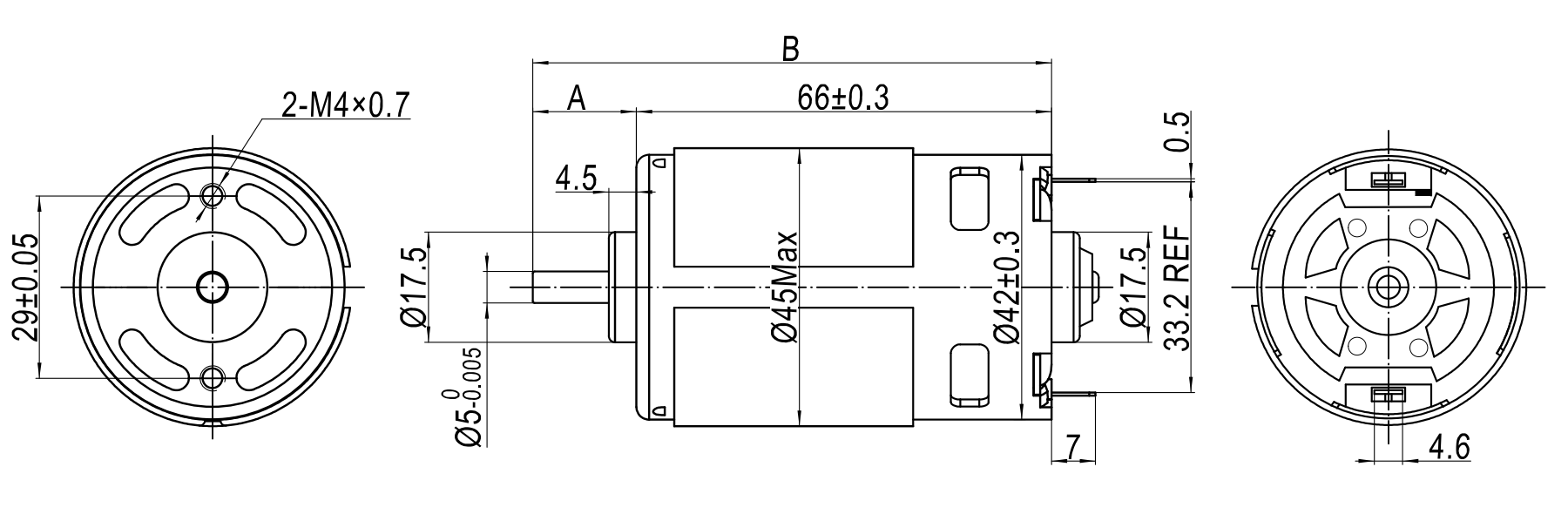

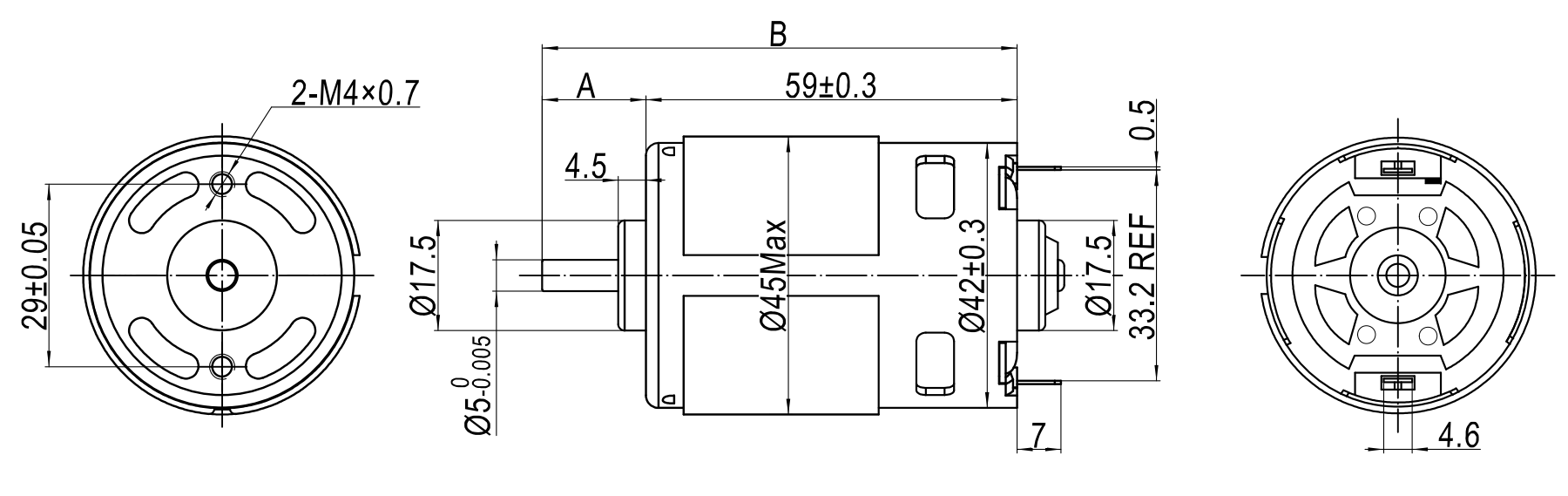

Reference Drawing

------ RS - 755 H

------ RS - 775 H

The length of shaft can be customized, Please contact me.

PMDC MOTOR Technical Date
Model	Rated Voltage (V)		No-Load		Rated				Stall
	Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
	Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-770H	8523R	6.0~12.0	12 VDC	15000	2.2	13177	15.91	81/826.2	111.8	115	666.9/6802
RS-775H	25110R	6.0~24.0	24 VDC	3478	0.15	2925	0.75	44.4/452.9	13.35	4.07	245.7/2506

Application

Certifications

Recommend Product

Contact Us

Looking forward to your feedback!

FAQ

1. Q: Are you trading company or manufacturer?

A: We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.

2. Q: What is the payment term for a new customer?

A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.

3. Q: I can't find a suitable motor on your website, can you customize the motor for me?

A: Yes, we can customize a suitable motor according to our customer's requirements.

4. Q: Do you have certificates for the motors?

A: Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.

5. Q: How is your Quality Control?

A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.

6. Q: What is the typical lead time for customized orders?

A: The lead time depends on the specific customization requirements, typically ranging from 15 to 30 days. Please feel free to contact us to discuss your specifications.
