Shunli 6v 12v Dc Gear Motors 24v 15000 Rpm Mini Dc Motor Rs-555 with the Lowest Price

Product Description

6v 12v 24v 15000 rpm dc motor rs-555 with the lowest price

Product Details

6v 12v Dc Gear Motors 24v 15000 Rpm Mini Dc Motor Rs-555 with the Lowest Price

Motor Customized Specification, Please contact me.

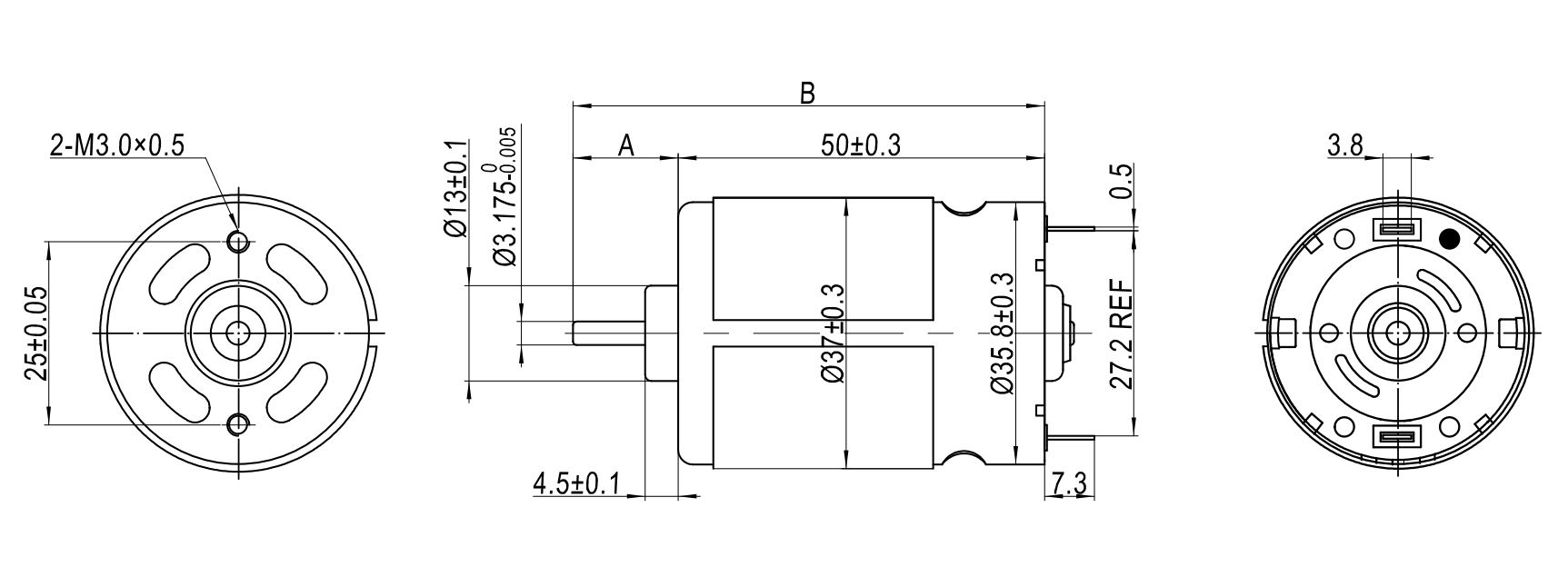

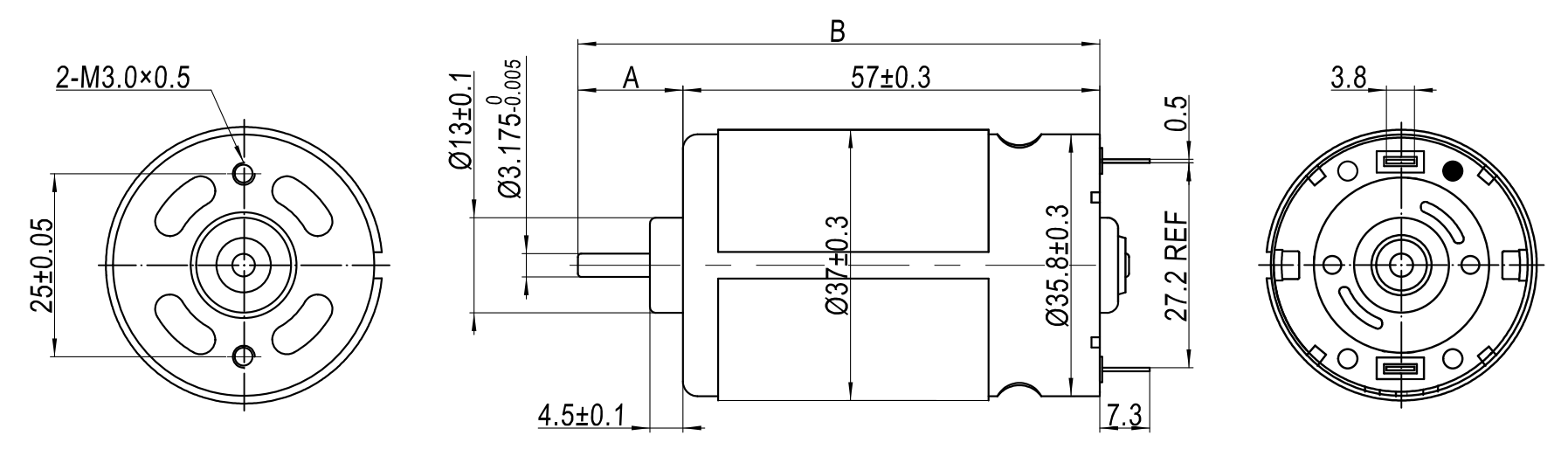

Reference Drawing

RS - 545 A

RS - 555 A

RS - 575 A

The length of shaft can be customized, Please contact me.

Reference Datasheet

PMDC MOTOR TECHNICAL DATA
Model		Rated Voltage(V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7/262	10.6	4.8	204/2080
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6/261.3	40.36	48.89	281.4/2870
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9/223.4	15.35	11.31	156/1591
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2/195.8	12.09	4.2	124.5/1270

Application

Certifications

Why Choose Us

1. Professional Manufacturer

We are a factory specialized in producing motors for more than 14 years. Our professional R&D team and mature management will bring you a pleasant experience.

2. Quality Control

In order to confirm quality, from the moment we receive material to shipment, every step of the way is carefully checked. Quality is the basis of our development.

Frequently Asked Questions

1 Are you a trading company or a manufacturer?

We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.

2 What is the payment term for a new customer?

We can draw up an Online Assurance Order for our new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay via PayPal, T/T, etc.

3 I cannot find a suitable motor on your website, can you customize the motor for me?

Yes, we can customize a suitable motor according to our customers' requirements.

4 Do you have certificates for the motors?

Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.

5 How is your Quality Control?

We have professional checking staff on every production line process. After finishing the whole motor, we have professional quality testing machines to test it, such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise Tester, etc.
