Small Size High Power High Rpm 12v 24v Gear Motor for Vacuum Cleaner/cordless Power Tools/sewing Machine
Small Size High Power High Rpm 12v 24v Gear Motor for Vacuum Cleaner/cordless Power Tools/sewing Machine
Small Size High Power High Rpm 12v 24v Gear Motor for Vacuum Cleaner/cordless Power Tools/sewing Machine
Small Size High Power High Rpm 12v 24v Gear Motor for Vacuum Cleaner/cordless Power Tools/sewing Machine
1 / 4
Small Size High Power High Rpm 12v 24v Gear Motor for Vacuum Cleaner/cordless Power Tools/sewing Machine
Small Size High Power High Rpm 12v 24v Gear Motor for Vacuum Cleaner/cordless Power Tools/sewing Machine
Small Size High Power High Rpm 12v 24v Gear Motor for Vacuum Cleaner/cordless Power Tools/sewing Machine
Small Size High Power High Rpm 12v 24v Gear Motor for Vacuum Cleaner/cordless Power Tools/sewing Machine

Small Size High Power High Rpm 12v 24v Gear Motor for Vacuum Cleaner/cordless Power Tools/sewing Machine

Send Inquiry

Product Description

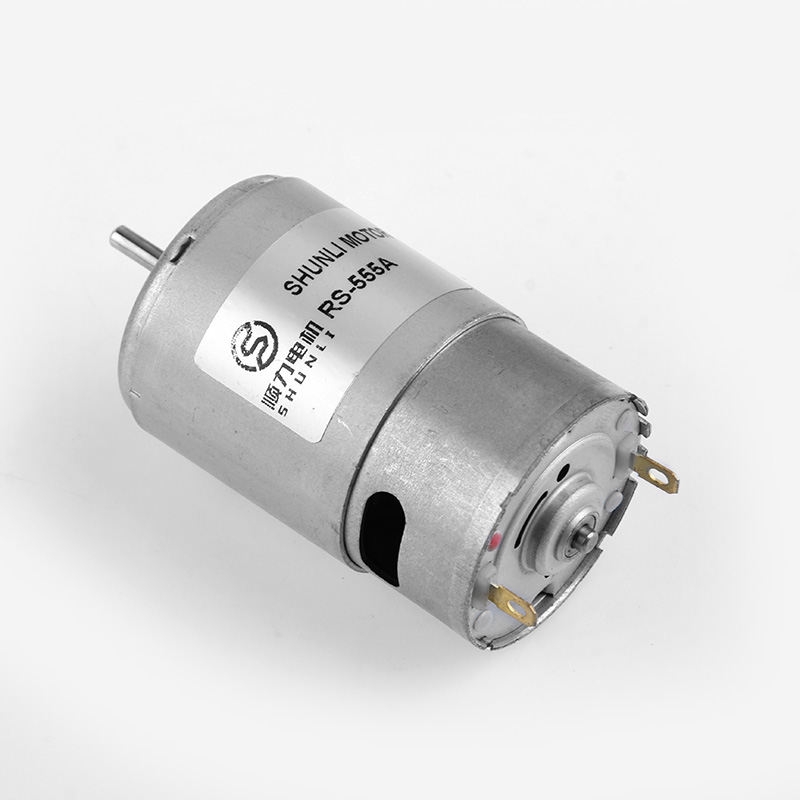

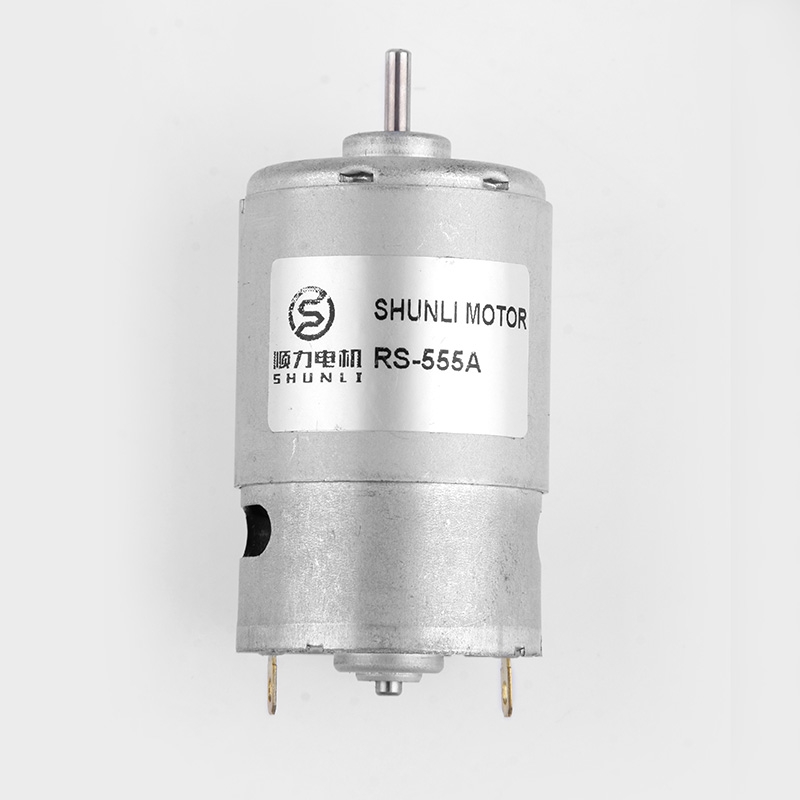

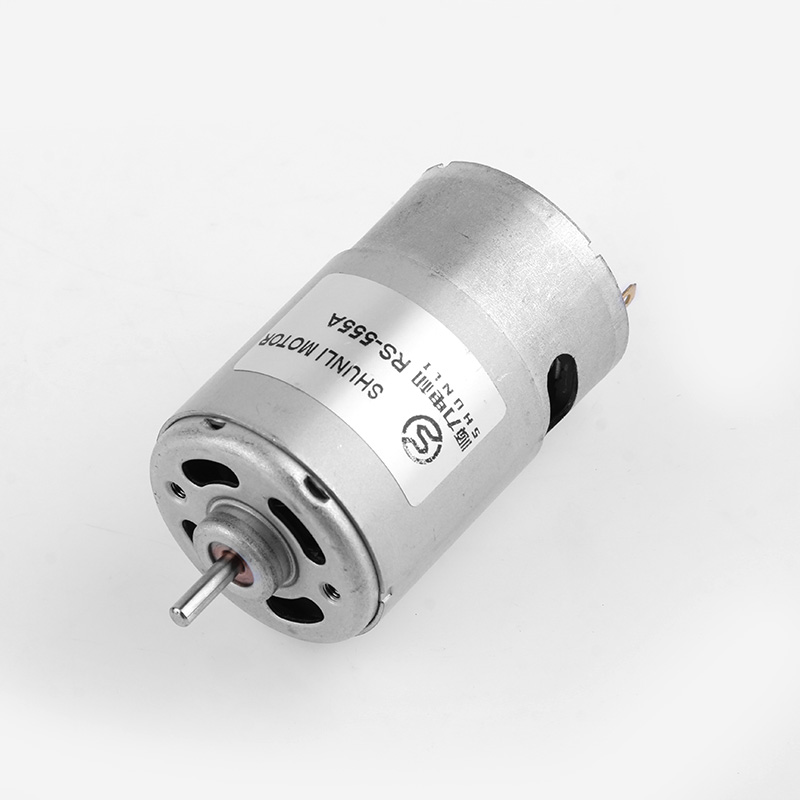

Small Size High Power High RPM 12V 24V Gear Motor for Vacuum Cleaner / Cordless Power Tools / Sewing Machine
Promotion
Promotion Poster
Motor Categorization
Product Description

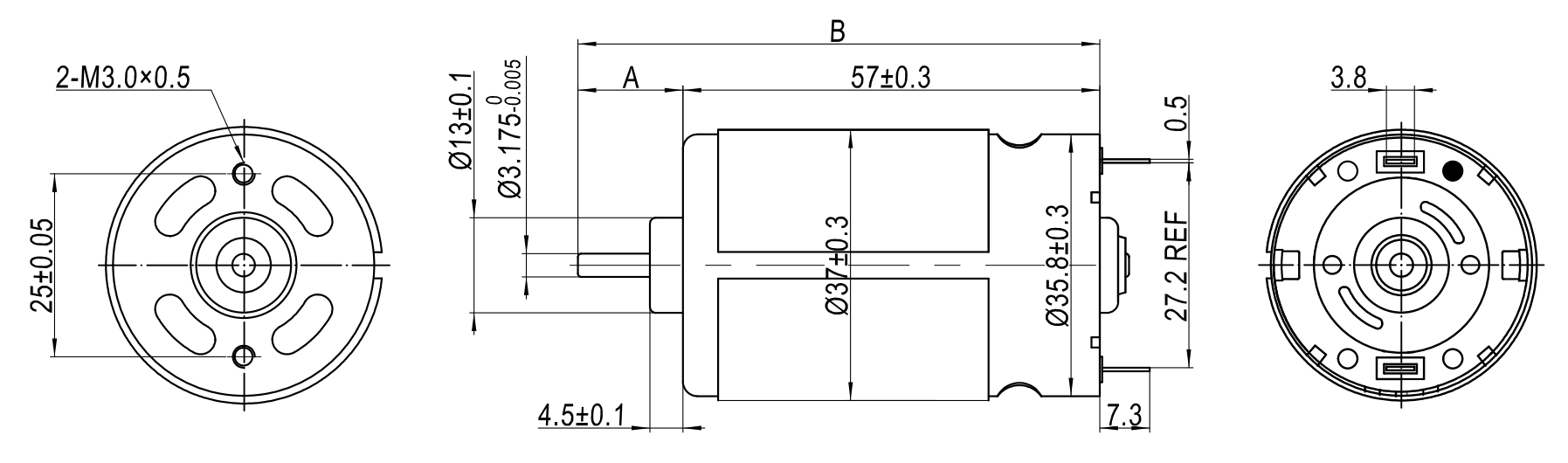

Product Blueprint and Specifications
PMDC MOTOR Technical Data
Model Rated Voltage(V) No-Load Rated Stall
Operating Range Nominal Speed (RPM) Current (A) Speed (RPM) Current (A) Torque (mN.m / gf.cm) Power (W) Current (A) Torque (mN.m / gf.cm)
RS-550H 23128R 6.0~24.0 24VDC 4500 0.1 3932 0.39 25.7/262 10.6 4.8 204/2080
6034 6.0~12.0 12VDC 16000 1.12 13613 4.96 25.6/261.3 40.36 48.89 281.4/2870
RS-555H 3540 6.0~12.0 12VDC 7800 0.3 6708 1.84 21.9/223.4 15.35 11.31 156/1591
23100 6.0~24.0 24VDC 7000 0.14 6004 0.77 19.2/195.8 12.09 4.2 124.5/1270
Application
Application Overview
Application Banner
Customer Evaluation
Customer Evaluation Dashboard
Certifications
Compliance Certificates Overview
Compliance Certificates Detail
Recommend Product
Recommended Products Catalog
FAQ
1. Q: Are you trading company or manufacturer?
A: We're factory. We specialize in micro dc motor and dc gear motor more than 14 years.
2. Q: What is the payment term for new customer?
A: We can draw up an Online Assurance Order for our new customer, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal or T/T etc.
3. Q: I can't find suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize a suitable motor according to our customer's requirements.
4. Q: Do you have certificates for the motors?
A: Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
5. Q: How is your Quality Control?
A: We have professional checking staff on every production line process. After finishing the whole motor, we have complete quality machines to test the motor, such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers etc.
6. Q: What is the standard packaging and delivery time?
A: All items are packaged in safe, standard industrial packaging. Delivery timelines vary depending on the production requirements and overall order volume.
